OPW一次油气回收接头 OPW一次油气回收自封接头及盖
OPW 1611AV 3"x4" Vapor Recovery Adaptor - Aluminum 1711T Vapor Recovery Cap
OPW油气回收密封快速接头

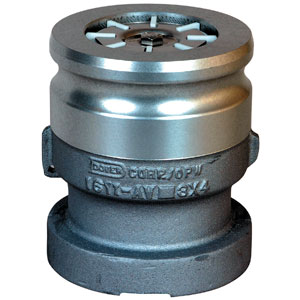

1611 Series Vapor Recovery Adaptors
OPW 1611AV 油气回收密封快速接头用于油气回收管端口,具有自密封效果,只有使用OPW 633CV-AL4030连接才能顶开密封口,保持气相管路连通。1611系列最大工作压力10PSI,安装尺寸3"。The OPW 1611AV and 1611AVB are poppeted adaptors, designed to mate with a vapor recovery elbow, for returning gasoline vapor to the tank truck during a fuel delivery to an underground tank.

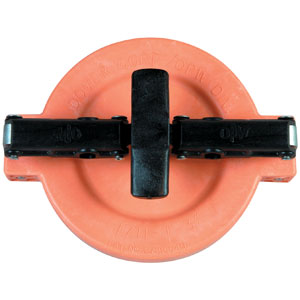

OPW 1711T油气回收密封盖
OPW 1711T油气密封盖用于OPW 1611AV,1611AVB,1611VR接头,防止油气挥发和水、灰尘和杂质进入快速接头和进入油罐。1711T密封盖用DURATUFF结构防止生锈。1711T可加锁。
Ordering Specifications
Part No. |
Elbow Size |
Riser Thread |
Weight |
|
Description |
|
in. |
mm |
in. |
mm |
lbs. |
kg |
|
1611AV-1605 |
3 |
76 |
3 |
76 |
2.91 |
1.32 |
Clear Anodized Aluminum |
1611AV-1620 |
3 |
76 |
4 |
102 |
3.25 |
1.48 |
Clear Anodized Aluminum |
1611AVB-1625 |
3 |
76 |
4 |
102 |
7.97 |
3.62 |
Cast Bronze |
Dimensions
Product Combinations |
H-Total Installed Height |
|
In. |
mm |
61VSA & 1711T |
6-3/8 |
162 |
61VSA & 1711LPC |
5-3/8 |
137 |
1611AV & 1711T |
6-1/4 |
159 |
1611AV & 1711LPC |
5-1/4 |
133 |
61SALP & 634TT |
4-3/8 |
111 |
61SALP & 634LPC |
4-7/8 |
124 |
633T & 634TT |
4-1/2 |
114 |
633T & 634LPC |
3-1/2 |
89 |
Replacement Parts
Key |
Part No. |
Description |
1 |
C02642M |
Bridge Guide |
Not Shown |
H15294M |
Screw (3") (76mm) |
2 |
H04145M |
Gasket (3") (76mm)
Gasket (3" x 4")
(76 x 102mm) |
H04150M |
3 |
H08989M |
Spring |
61VSA-KIT Complete Replacement Kit |
|
