OPW 1004D3-0402 API底部灌装快换接头 OPW 1004D3-0402干式分离阀
OPW API 1004D3 & 1004D4 干式分离阀 快换接头
OPW 1004D3-0402 API Bottom Loading Coupler

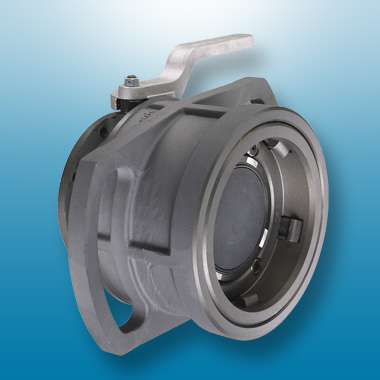

OPW 1004D2 API快换接头
OPW工程系统公司开发的1004D2是标准的“无滴漏”底部灌装用快换接头，具有可靠地性能优点。1004D2可与所有符合API RP-1004要求的底部灌装快换接头配合使用，能明显减少液体的泄漏损失。OPW 1004D3-0402干式分离阀。OPW 1004D3-0402 API底部灌装快换接头。API干式接头(又称干式阀、干式分离阀、下装接头)，主要应用于石油库区底部密闭装卸系统中鹤管与油罐车之间。接合快速，由于具有自封机构，基本可以做到接合与分离时无泄漏。是油气回收的重要环节设备。手动开启机构。OPW API 1004D2/1005E API Bottom Loading Coupler (No Longer Available, Replaced by 1004D3 & 1004D4)
The 1004D2/1005E API Bottom Loading Coupler from OPW Engineered Systems combines ease of use with heavy-duty construction for unmatched dependability. An advanced sealing design, using one seal instead of two, provides superior sealing characteristics and makes replacement quick and simple. Its heavy-duty aluminum and stainless steel construction has been proven at terminals around the globe.

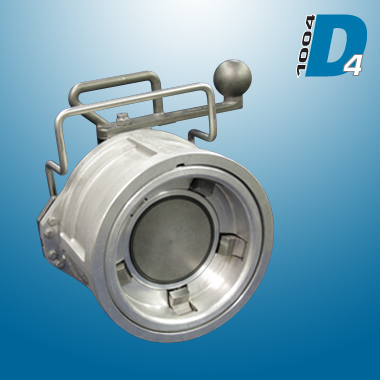

OPW API 1004D4 API Bottom Loading Coupler
技术资料下载
优点
-为高效输送所有各种燃油而设计—标准配备高性能的Viton密封，具有优异的耐磨性和耐油性能。也可以提供其他材质的密封，包括Buna N、Teflon、Chemraz、和Kalraz等
-设计结构不会在装车台上造成混乱—其新型、便于自我对心的5-凸轮结构能确保与快速接头形成紧密的密封，抵抗侧面受力的影响
-消除鼻型密封被吹破的危险—采用倒角方式，加强密封效果
-密封套件—包括更换1004D2底部灌装快换接头密封所需的所有部件。可以提供高性能的Teflon、Buna-N和其他密封材质
-Conversion ksts

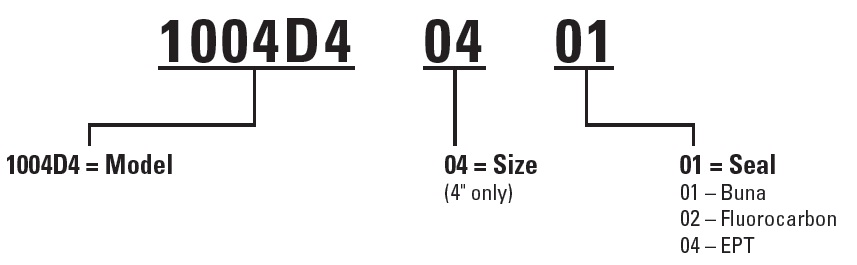

Ordering Guide
Units (1004D4)
Seal Kits
OPW 1004D4SRK Seal Replacement Kits include everything needed to change the seals in the 1004D4 API Coupler.
Seal Replacement Kits are always recommended as spare parts.
Seal Material |
Coupler Model # |
Nose Seal (16) |
Stuff Box Seal (26) |
Stuff Box Seal (27) |
Cylinder Seal (15) |
Temp. Rating |
| Buna-N 1500 |
1004D4-0401 |
H30482M |
H20129M |
H31705M |
H30258M |
-20°F–212°F
(-29°C–100°C) |
| Fluorocarbon |
1004D4-0402 |
H30483M |
H20175M |
H31706M |
H30217M |
-20°F–400°F
(-29°C–204°C) |
| EPT E 692 |
1004D4-0404 |
H31957M |
H20176M |
H31707M |
H31956M |
-50°F–225°F
(-46°C–107°C) |
# |

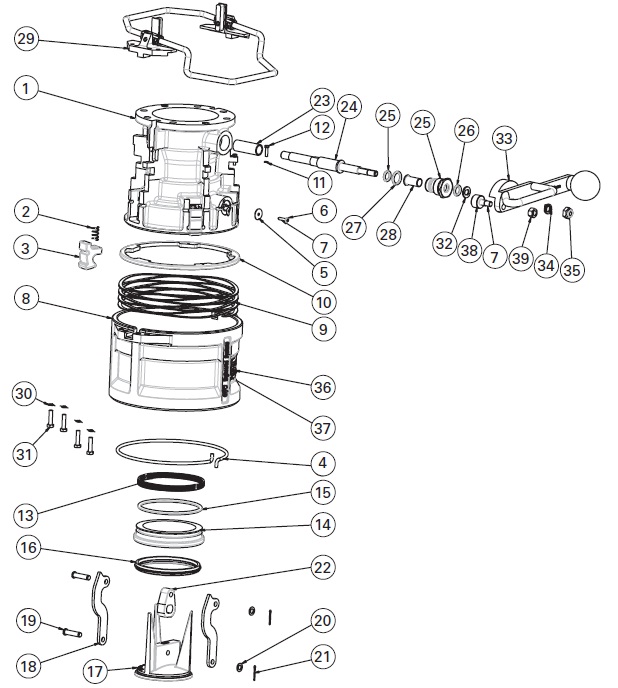

Description |
Qty |
Material |
Part # |
|
| 1 |
Body |
1 |
ASTM B26 Anodized (Aluminum A356-T6) |
E20065AH |
|
| 2 |
Spring |
5 |
Type 302 Stainless Steel |
H32170M |
|
| 3 |
Cam |
5 |
ASTM A351 CF8M (316 SST) |
9C21327EW |
|
| 4 |
Cam Retaining Ring |
1 |
ASTM A693 (17-7 PH SST, H900 Hardened |
H32225M |
|
| 5 |
Fender Washer |
1 |
316 Stainless Steel |
H32252M |
|
| 6 |
Sheet Metal Screw |
1 |
Steel, Zinc Plated |
H32251M |
|
| 7 |
Loctite |
As Required |
Threaded Locking Compound |
Type 242 |
|
| 8 |
Sleeve |
1 |
ASTM B26 Anodized (Aluminum A356-T6) |
E20063AH |
|
| 9 |
Jump on Wave Spring |
1 |
ASTM A693 (17-7 PH SST, H900 Hardened) |
H32055M |
|
| 10 |
Wave Spring Support Ring |
1 |
304 SST |
D20205RE |
|
| 11 |
M4 Spring Lock Washer |
3 |
316 SST |
H32082M |
|
| 12 |
M4 X .7mm by 16mm Hex Cap Screw |
3 |
316 SST |
H32081M |
|
| 13 |
Wave Spring |
1 |
ASTM A693 (17-7 PH SST, H900 Hardened) |
H31091M |
|
| 14 |
Cylinder |
1 |
ASTM SB241 (Aluminum 6061-T6) |
C21283AH |
|
| 15 |
Cylinder O-Ring |
1 |
See Seal Options Chart |
- |
* |
| 16 |
Nose Seal, API CPLR, Fluorocarbon |
1 |
See Seal Options Chart |
- |
* |
| 17 |
Poppet |
1 |
ASTM B26 Anodized (Aluminum A356-T6) |
D20069AH |
|
| 18 |
High Pressure Link |
2 |
410 SST Hardened |
H30552M |
|
| 19 |
Clevis Pin |
2 |
ASTM SA564 (17-4 PH SST, H900 Hardended) |
H30610RE |
|
| 20 |
Washer, Flat, SST, 5/16 |
2 |
18-8 SST |
H30206M |
|
| 21 |
Cotter Pin |
2 |
SST |
H30205M |
|
| 22 |
Drive Link |
1 |
ASTM A351 CF-8M (316 SST) |
C21255EW |
|
| 23 |
Tube Spacer, API, SST |
1 |
316 SST |
C21254RE |
|
| 24 |
Handle Shaft |
1 |
ASTM A564 (13-8, Condition RH 950, RC 48) |
C21290RE |
|
| 25 |
Stuff Box, API and LOK, SST |
1 |
ASTM A479 316 (316L) |
C20812RE |
|
| 26 |
O-Ring, Fluorocarbon |
2 |
See Seal Options Chart |
- |
* |
| 27 |
O-Ring, Fluorocarbon |
1 |
See Seal Options Chart |
- |
* |
| 28 |
Sleeve Bearing |
1 |
Teflon/Graphite |
H32163M |
* |
| 29 |
Recock Handle Assembly |
1 |
SST |
D20217 |
|
| 30 |
M6 Spring Lock Washer |
8 |
316 SST |
H32084M |
|
| 31 |
M6 X 1.0mm by 25mm Hex Cap Screw |
8 |
316 SST |
H32083M |
|
| 32 |
Load Distribution Washer |
1 |
.75 Inch Stock AISI 410 SST Bar Stock |
H32246RE |
|
| 33 |
Operating Handle |
1 |
ASTM A351CF8M (316 SST) |
E20070EW |
|
| 34 |
Washer, Nord-lock |
1 |
SST ANSI 316 |
H31920M |
|
| 35 |
Distorted Thread Nut, 10mm |
1 |
Steel, Zinc Plated M10 x 1.5mm |
H32256M |
|
| 36 |
Nameplate |
1 |
0.12 Satin |
|
|
| 37 |
6-20 x 3/16" Long Thread Screw |
4 |
Type B, Steel, Zinc Plated |
H32149M |
|
| 38 |
Roller Bearing |
1 |
Steel Construction, Sealed Bearings |
H30219M |
|
| 39 |
Nut, Hex, CST, ZP, 3/8"-24 |
1 |
ZP CST |
H30220M |
|
*Items included in seal replacement kits (1004D4SRK). 4" API 下装干式接头 | API 干式接头(又称干式阀、干式分离阀、下装接头) | OPW鹤管、输油臂、API接头 干式阀,OPW鹤管、输油臂、API接头 干式阀 | API鹤管 底部装车鹤管 干式分离阀鹤管、干式分离阀、进口干式分离阀、下装鹤管干式阀、美国干式分离阀、干式阀泄漏量、美国OPW干式分离阀、API干式阀型号、Api干式阀接口、OPW鹤管、输油臂、API接头 干式阀_OPW | API干式接头(底装鹤管用干式分离阀、下装接头) | 干式接头,下装接头,API干式分离阀,API卸油阀,卸油阀,进口干式接头 、 底装鹤管 API干式分离阀鹤管| API干式接头(底装鹤管用干式分离阀、下装接头) | OPW API干式接头(底装鹤管用干式分离阀、下装接头) OPW API 干式分离阀
|
