OPW Autolok快速接头
Autolok Series Quick Disconnect Fittings & Couplings
可达到更高安全水平的自动锁定接头装置
OPW Autolok® 快速接头是一种自动锁定的接头装置,在流体管线连接方面可达到更高的安全水平,且使用更加方便。Autolok®的专利锁定机构设置在对接臂的内部,只要轻轻一推就能使连接臂锁合,除非操作人员采取解锁的动作,否则接头将始终保持固定、闭合的位置。不需要任何夹具、销钉或按钮之类的东西。Autolok®采用享有专利的Twin-Kam™爪掣机构将阳端接头更可靠地固定在阴端接头上,以防止意外的松动。
Autolok阴端快速接头和防尘盖帽技术选型资料下载
Autolok Quick Couplers PDF Catalog
AUTOLOK®系列快速接头优点
超强保护—采用独特Twin-Kam设计的自锁臂为防止意外松动和脱卸提供了额外保护。
操作方便—自锁臂在发出清晰的咔哒声后自动锁定。松开时也只需用力拉一下享有专利的松锁机构。不需要插入和取出夹具之类,也不需要按下弹簧按钮之类的装置。
耐用性和高效性—其设计结构确保-佳的流量特性。高强度的316不锈钢材质结构更提高了在严酷环境条件下使用的耐用性。
AUTOLOK®系列快速接头特性
Autolok®专利对接臂—采用像通常的快速接头一样的闭合方法,但是它能自动地进行锁定。
弹簧圈指环—其专利设计结构能防止被对接臂缠住,从而保证可靠闭合。简单地拉一下这个指环就能松开对装接头。
高强度结构—可提供316不锈钢材质的结构。
终身保修(GFL)型对接臂—如果本公司提供的独特结构的Twin-Kam自锁臂出现任何破裂,我们将免费进行更换。

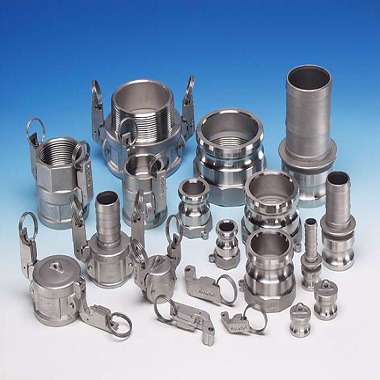

Autolok Coupling Series
|
|
733 DL Coupler -
Female NPT |
733 CL Coupler -
Hose Shank |
|
|
733 BL Coupler - Male NPT |
733 DCL Dust Cap |
- 订购指南
OPW Autolok优越性:
额外保护 – 自锁手柄,优越的Twin-Kam 双凸轮设计提供额外保护防止意外松脱和开启。
易于操作 – 推入时缩紧柄自动缩紧。开启时只需简单的提开专利锁松脱机构。不需要安装和拆除卡箍。不需要按动弹簧按钮。
终身保修(GFL)缩紧柄 – 如果 Twin-Kam双凸轮柄断裂,免费更换。
更耐用可靠 – 设计成优化流量。加重的316不锈钢结构保证恶劣环境的使用寿命。

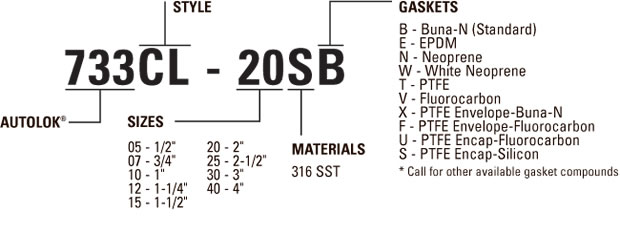

Autolok Coupling Series Ordering Specifications
733 DL Coupler |
Female NPT
产品型号 |
尺寸 |
|
733DL-SS05 |
1/2" |
733DL-SS07 |
3/4" |
733DL-SS10 |
1" |
733DL-SS12 |
1-1/4" |
733DL-SS15 |
1-1/2" |
733DL-SS20 |
2" |
733DL-SS25 |
2-1/2" |
733DL-SS30 |
3" |
733DL-SS40 |
4" |
733 CL Coupler Hose Shank |
产品型号 |
尺寸 |
|
733CL-SS05 |
1/2" |
733CL-SS07 |
3/4" |
733CL-SS10 |
1" |
733CL-SS12 |
1-1/4" |
733CL-SS15 |
1-1/2" |
733CL-SS20 |
2" |
733CL-SS25 |
2-1/2" |
733CL-SS30 |
3" |
733CL-SS40 |
4" |
733 BL Coupler - Male NPT |
产品型号 |
尺寸 |
|
733BL-SS05 |
1/2" |
733BL-SS07 |
3/4" |
733BL-SS10 |
1" |
733BL-SS12 |
1-1/4" |
733BL-SS15 |
1-1/2" |
733BL-SS20 |
2" |
733BL-SS25 |
2-1/2" |
733BL-SS30 |
3" |
733BL-SS40 |
4" |
733 DCL Dust Cap* |
产品型号 |
尺寸 |
|
733DCL-SS05 |
1/2" |
733DCL-SS07 |
3/4" |
733DCL-SS10 |
1" |
733DCL-SS12 |
1-1/4" |
733DCL-SS15 |
1-1/2" |
733DCL-SS20 |
2" |
733DCL-SS25 |
2-1/2" |
733DCL-SS30 |
3" |
733DCL-SS40 |
4" |
修理包、垫圈和配件
Kamlok修理包
Kit # |
Size |
633ARK-SS07* |
1? 2” & 3/4” |
633ARK-SS10 |
1” |
633ARK-SS20 |
1-1?4” – 2-1/2” |
633ARK-SS30 |
3”, 4” & 5” |
Parts Kit includes:
2 Cam Arms
2 Pins
2 Finger Rings
Instructions
*Note: Finger Rings are not included with 1/2” and 3/4” Kit.
API Couplers 1004D3 API Bottom Loading Coupler
Autolok修理包 独有锁臂修理包
Kit # |
Size |
733WARK-SS07 |
3/4” |
733WARK-SS10 |
1” |
733WARK-SS20 |
1-1?4” – 2-1/2” |
733WARK-SS30 |
3” & 4” |
尺寸资料下载
- 外螺纹NPT阴端接头 733BL
- 防尘盖帽 733CL
Parts Kit includes:
1 Cam Arm
1 Finger Ring
1 Pin
Instructions
Cliplok修理包 垫圈
Size (in.) |
Buna-N (Standard) Part No. |
EPDM Part No. |
Neoprene Part No. |
White Neoprene Part No. |
Fluorocarbon-A Part No. |
3/4” |
H06595M |
H05215M |
H01881M |
** |
H00966M |
1” |
H06480M |
H05216M |
H01884M |
H04196M |
H00967M |
1-1/4” |
H06477M |
H20534M |
H01887M |
** |
H00968M |
1-1/2” |
H06430M |
H20535M |
H01890M |
H04200M |
H00972M |
2” |
H20544M |
H20536M |
H01893M |
H04201M |
H00973M |
2-1/2” |
H20545M |
H20537M |
H01896M |
H01189M |
H00974M |
3” |
H20546M |
H20538M |
H01899M |
H01190M |
H00975M |
4” |
H20547M |
H05225M |
H01902M |
H04208M |
H00976M |
Size (in.) |
PTFE* Part No. |
PTFE Envelope Buna Part No. |
PTFE Envelope Fluorocarbon Part No. |
PTFE Encapsulated Fluorocarbon Part No. |
PTFE Encapsulated Silicone Part No. |
3/4” |
H01979M |
H03304 |
H03401 |
H20887M |
H20888M |
1” |
H01980M |
H03307 |
H03402 |
H20889M |
H20890M |
1-1/4” |
H01981M |
H03310 |
H03405 |
H20891M |
H20892M |
1-1/2” |
H01982M |
H03317 |
H03407 |
H20893M |
H20894M |
2” |
H01983M |
H03325 |
H03408 |
H31116M |
H07904M |
2-1/2” |
H02172M |
H03330 |
H03410 |
H31118M |
H07905M |
3” |
H02173M |
H03333 |
H03411 |
H20895M |
H20896M |
4” |
H02174M |
H03336 |
H03412 |
H20845M |
H31562M |
Autolok Couplers & Dust Caps
OPW Autolok quick disconnects are self-locking couplers that provide an added level of safety and convenience at the fluid connection. Autolok’s patented locking mechanism, built into the coupling arm, means you simply snap the locking arms shut with one smooth motion and the coupler stays secure and shut until you unlock it. No clips, pins or buttons. Autolok uses the patented Twin-Kam feature to hold the adaptor more securely to the coupler to provide added protection against accidental release. OPW工程系统公司为客户提供本行业中所使用的-完整系列的快速接头产品。 Kamlok 是本行业中应用-多的凸轮-滑槽式接头装置。这个名字已经成了快速接头的代名词,可靠安全,使用方便,被公认为业界的标准。 Autolok 快速接头是一种自动锁定的接头装置,可提供更高的安全水平。Kamlok和Autolok快速接头都具备独特的Twin-Kam自锁臂结构,该专利结构能更牢地夹住阳端接头,防止其出现意外性跑料。这些广受欢迎的接头和连接器是市场上-为安全、-为坚固和安装-为快捷的接头系统。
Autolok Quick Couplers
Quick Couplers are self-locking couplers that provide an added level of safety and convenience at the fluid connection. Autolok’s patented locking mechanism, built into the coupling arms, means you simply snap the locking arms shut with one smooth motion and the coupler stays secure and shut until you unlock it. No clips, pins or buttons. Autolok uses the patented Twin-Kam detents to hold the adaptor more securely to the coupler to provide added protection against accidental release.
|
