OPW Kamvalok 1600AN系列阳端接头 干式接头
OPW 1600AN Series Adaptors for Kamvalok® Couplings
OPW 1600AN系列专为与OPW Kamvalok阴端接头配合使用以防止联接/脱卸过程中的液体泄露而设计的。阳端接头内含一个弹簧加载的提升阀，用来保证快速关闭和可靠密封。
1600AN Series Adaptors for Kamvalok® Couplings_PDF下载
1600AN系列是专为OPW Kamvalok阴端接头配合使用以防止联接/脱卸过程中液体泄漏而设计的。阳端接头内含一个弹簧加载的提升阀，用来保证快速关闭和可靠密封。The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok- Couplings to help prevent liquid spillage during the connection/disconnection process. The adaptor contains a spring-loaded poppet to assure fast closing and tight seal.
OPW Kamvalok 1700DL Series Coupler

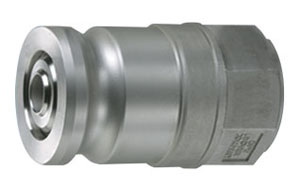

1600AN Series Kamvalok Adaptor
Kamvalok 1600AN系列阳端接头特点
- 提供1 ”, 2”和3”规格
- 高强度结构—可提供铝合金和不锈钢两种材质。不锈钢的耐腐蚀强度可与316不锈钢相当。
- 内螺纹联接—可以与外螺纹管接口或软管接头相配合。
- 弹簧加载的提升阀结构—能保证快速关闭和可靠密封。
- 多种密封材质可供选用—可提供Buna-N, Fluorocarbon, PTFE, EPDM和Chemraz?。
Kamvalok 1600AN系列阳端接头优点
- 整体式结构—消除一切可能泄露的途径。
- 防止漏液—采用提升阀操纵结构，只能在Kamvalok?阴端接头接好的情况下打开，在关闭情况下其设计结构能提供可靠密封。
- 运行可靠—简单的弹簧加载提升阀结构和高强度结构材质能确保长期、可靠的运行。
- -优化的流量条件—通过内置折流挡板来消除湍流，保证均匀的流量和较低的压降。

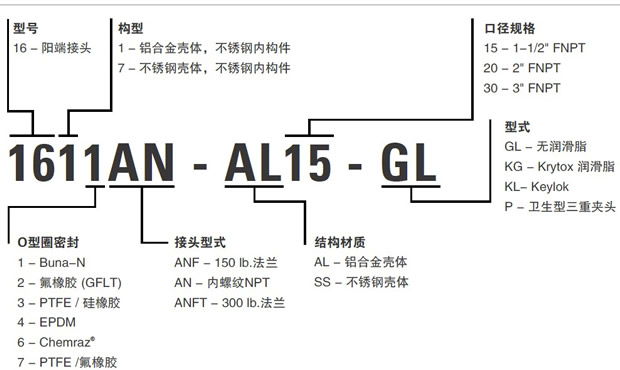

- 订货型号选型
OPW 1600AN Series Adaptor Ordering Specifications：
Stainless Steel Adaptors - Female NPT
产品型号 |
尺寸 |
| 1671AN-SS15 |
1-1/2" Buna Seal, Stainless Steel |
| 1671AN-SS20 |
2" Buna Seal, Stainless Steel |
| 1671AN-SS30 |
3" Buna Seal, Stainless Steel |
| 1672AN-SS15 |
1-1/2" Viton Seal, Stainless Steel |
| 1672AN-SS20 |
2" Viton Seal, Stainless Steel |
| 1672AN-SS30 |
3" Viton Seal, Stainless Steel |
| 1673AN-SS15 |
1-1/2" Teflon Silicone Seal, Stainless Steel |
| 1673AN-SS20 |
2" Teflon Silicone Seal, Stainless Steel |
| 1673AN-SS30 |
3" Teflon Silicone Seal, Stainless Steel |
| 1674AN-SS15 |
1-1/2" EPT Seal, Stainless Steel |
| 1674AN-SS20 |
2" EPT Seal, Stainless Steel |
| 1674AN-SS30 |
3" EPT Seal, Stainless Steel |
| 1676AN-SS15 |
1-1/2" Chemraz Seal, Stainless Steel |
| 1676AN-SS20 |
2" Chemraz Seal, Stainless Steel |
| 1676AN-SS30 |
3" Chemraz Seal, Stainless Steel |
| 1677AN-SS15 |
1-1/2" Teflon-Viton Seal, Stainless Steel |
| 1677AN-SS20 |
2" Teflon-Viton Seal, Stainless Steel |
| 1677AN-SS30 |
3" Teflon-Viton Seal, Stainless Steel |
| 1679AN-SS15 |
1-1/2" Viton-B Seal, Stainless Steel |
| 1679AN-SS20 |
2" Viton-B Seal, Stainless Steel |
| 1679AN-SS30 |
3" Viton-B Seal, Stainless Steel |
Aluminum Adaptors - Female NPT
产品型号
|
尺寸规格 |
| 1611AN-AL15 |
1-1/2" Buna Seal, Alum. & Stainless Steel |
| 1611AN-AL20 |
2" Buna Seal, Alum. & Stainless Steel |
| 1611AN-AL30 |
3" Buna Seal, Alum. & Stainless Steel |
| 1612AN-AL15 |
1-1/2" Viton Seal, Alum. & Stainless Steel |
| 1612AN-AL20 |
2" Viton Seal, Alum. & Stainless Steel |
| 1612AN-AL30 |
3" Viton Seal, Alum. & Stainless Steel |
| 1612A-AL07 |
3/4" Viton Seal, Alum. & Stainless Steel |
| 1613AN-AL15 |
1-1/2" Teflon Seal, Alum. & Stainless Steel |
| 1613AN-AL20 |
2" Teflon Seal, Alum. & Stainless Steel |
| 1613AN-AL30 |
3" Teflon Seal, Alum. & Stainless Steel |
| 1614AN-AL15 |
1-1/2" EPT Seal, Alum. & Stainless Steel |
| 1614AN-AL20 |
2" EPT Seal, Alum. & Stainless Steel |
| 1614AN-AL30 |
3" EPT Seal, Alum. & Stainless Steel |
| 1616AN-AL15 |
1-1/2" Chemraz Seal, Alum. & Stainless Steel |
| 1616AN-AL20 |
2" Chemraz Seal, Alum. & Stainless Steel |
| 1616AN-AL30 |
3" Chemraz Seal, Alum. & Stainless Steel |
| 1619A-AL07 |
3/4" Viton-B Seal, Alum. |
| 1619AN-AL15 |
1-1/2" Viton-B Seal, Alum. |
| 1619AN-AL20 |
2" Viton-B Seal, Alum. |
| 1619AN-AL30 |
3" Viton-B Seal, Alum. |
Approvals
| AAR Number |
Description |
| E129504 |
1600AN Series Kamvalok Adpater – Threaded |
| E129505 |
1600ANF Series Kamvalok Adapter – Flanged |
| E129507 |
634B/733DCL Series Kamlok/Autolok Dust Caps |
| CRN Number |
Region |
Description |
| OA4911.52 |
Alberta |
1.5”, 2”, 3” Aluminum and SST Kamvalok |
| OA4911.5R1 |
Ontario |
1.5”, 2”, 3” Aluminum and SST Kamvalok |
Ordering Specifications
CARB APPROVED AST EQUIPMENT - Direct Fill |
Product # |
Seal |
in. |
mm |
| 1611AN-2040 |
Direct Fill with Buna seal |
2 |
51 |
| 1612AN-2040 |
Direct Fill with Viton seal |
2 |
51 |
| 1611AN-3060 |
Direct Fill with Buna seal |
3 |
77 |
| 1612AN-3060 |
Direct Fill with Viton seal |
3 |
77 |
CARB APPROVED AST EQUIPMENT - Remote Fill |
| 1611AN-0200 |
Remote Fill with Buna Seal |
2 |
51 |
| 1611AN-0300 |
Remote Fill with Buna Seal |
3 |
77 |
| 1612AN-0150 |
Remote Fill with Viton? Seal |
1-1/2 |
38 |
| 1612AN-0200 |
Remote Fill with Viton? Seal |
2 |
51 |
| 1612AN-0300 |
Remote Fill with Viton? Seal |
3 |
77 |
| 1612AN-SS20 |
2" Stainless Steel Kamvalok? Adaptor |
2 |
51 |
| 1612AN-SS30 |
3" Stainless Steel Kamvalok? Adaptor |
3 |
77 |
OPW 1600AN Series Kamvalok Adaptor
The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok? Couplings to help prevent liquid spillage during the connection/disconnection process. The adaptor contains a spring-loaded poppet to assure fast closing and a tight seal.
性能参数：
Available in 1 ”, 2” & 3” Sizes
Heavy-Duty Construction – Available in aluminum, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel)
Female Threads – Can be fitted to either a male pipe end or to a hose fitting
Spring-Loaded Poppet Design – Assures fast closing and a tight seal
Wide Range of Seals Available – Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz?
Single Piece Design – Eliminates a possible leak path
Spill Prevention – Poppet-actuated design can only be opened with a Kamvalok? coupling; designed to provide a tight seal when closed
Reliability of Operation – The simple spring-loaded poppet design and heavy-duty construction provide for reliable, long-life operation
Optimum Flow Rate – Even flow and low pressure drop are achieved by a built-in deflector that reduces turbulence
Kamvalok Dry Disconnect Couplings by OPW Engineered Systems
Because of its unique poppet action the OPW Kamvalok Dry Disconnect virtually eliminates spillage of any residual liquid contained within the line after disconnection. Kamvaloks are used at transfer points where product loss is unacceptable.
Learn more about our Kamvalok brand of products

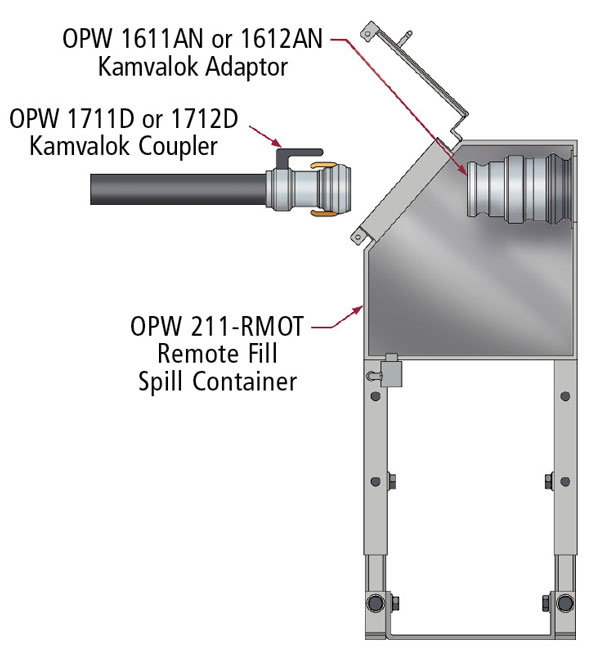

Typcial AST Filling Application
