OPW 1600ANF 系列 阴端接_1600ANF系列Kamvalok铁路槽车用阳端接头
OPW 1600ANF Series Dry Disconnect Adaptors干式接头



OPW 1600ANF系列阳端接头是专为采用ASME法兰的用途而设计的。 OPW 1673ANF、1674 ANF、和1676 ANF干式快速阳接头能将有害化学品及其蒸汽封闭在管线中,防止其泄漏到环境中。 结构坚固而又便于快速安装的1600ANF系列干式快速阳接头是用于闭路装卸操作的理想设备。The OPW 1600ANF Series Adaptors are designed specifically for applications using an ASME flange.The OPW 1673ANF, 1674ANF and 1676ANF Dry Disconnect Adaptors keep hazardous chemicals and vapors in-line and out of the environment.




OPW 1600ANF Series Dry Disconnect Adaptors_PDF下载



优点

- 防止漏液—采用提升阀操纵结构,只能在Kamvalok系列干式快换接头联接使用
- 便于联接—提供各种方便的联接头子,适用于铁路和公路槽车、多式联运储罐和工艺过程储罐中的操作使用
- 可与D2000干式快换接头或Kamvalok系列干式快换接头联接使用
- 便于清洗—可以快速拆卸开来
- 专为采用ASME法兰的用途设计



特性

- 高强度结构—不锈钢材质的耐腐蚀强度可与304不锈钢相当
- 可提供凸面法兰或榫槽型的设计结构
- 弹簧加载的提升阀结构—能保证快速关闭和可靠密封
- 多种密封材质可供选用—Teflon、EPT、Chemraz、Buna N和Viton等。
- 可提供1-1/2”、2”和3”(DN40,50,80)口径规格



OPW 1600ANF and 1600ANFT Series Railcar Adaptors
OPW 1600ANF and 1600ANFT Series Railcar Adaptors
OPW 1600ANF Series Kamvalok Railcar Adaptor

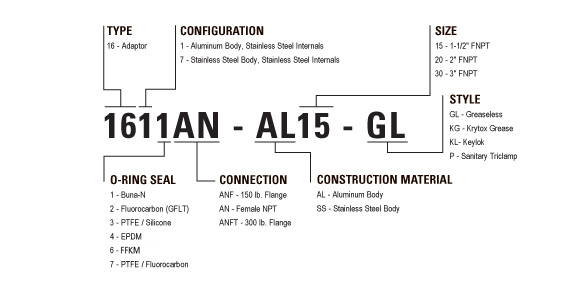

OPW 1600ANF Stainless Steel Adaptors - 150 Lb. ASME RF Flange
1672ANF-SS15 1-1/2" Viton Seal, SST Adaptor* w/2" Flange
1672ANF-SS20 2" Viton Seal, SST Adaptor* w/2" Flange
1672ANF-SS30 3" Viton Seal, SST Adaptor* w/3" Flange
1673ANF-SS1515 1-1/2" Teflon Silicone Seal, SST Adaptor* w/1-1/2" Flange
1673ANF-SS15 1-1/2" Teflon Silicone Seal, SST Adaptor* w/2" Flange
1673ANF-SS20 2" Teflon Silicone Seal, SST Adaptor* w/2" Flange
1673ANF-SS30 3" Teflon Silicone Seal, SST Adaptor* w/3" Flange
1674ANF-SS15 1-1/2" EPT Seal, SST Adaptor* w/2" Flange
1674ANF-SS20 2" EPT Seal, SST Adaptor* w/2" Flange
1674ANF-SS30 3" EPT Seal, SST Adaptor* w/3" Flange
1676ANF-SS15 1-1/2" Chemraz Seal, SST Adaptor* w/2" Flange
1676ANF-SS20 2" Chemraz Seal, SST Adaptor* w/2" Flange
1676ANF-SS30 3" Chemraz Seal, SST Adaptor* w/3" Flange
1677ANF-SS15 1-1/2" Teflon Viton Seal, SST Adaptor* w/2 " Flange
1677ANF-SS20 2" Teflon Viton Seal, SST Adaptor* w/2" Flange
1677ANF-SS30 3" Teflon Viton Seal, SST Adaptor* w/3" Flange
1679ANF-SS15 1-1/2" Viton-B Seal, SST Adaptor* w/2" Flange
1679ANF-SS20 2" Viton-B Seal, SST Adaptor* w/2" Flange
1679ANF-SS30 3" Viton-B Seal, SST Adaptor* w/3" Flange

Stainless Steel Adaptors - 300 Lb. ASME Tongue & Groove Flange
1674ANFT-SS20 2" EPT Seal, SST Adaptor* w/2" Flange
1674ANFT-SS30 3" EPT Seal, SST Adaptor* w/3" Flange
1676ANFT-SS20 2" Chemraz Seal, SST Adaptor* w/2" Flange
1676ANFT-SS30 3" Chemraz Seal, SST Adaptor* w/3" Flange

1600ANF Series Kamvalok Railcar Adaptor

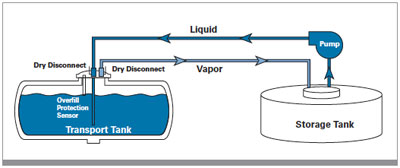

The OPW 1600ANF and 1600ANFT Series Railcar Adaptors are designed specifically for applications using an ANSI flange. The OPW 1600ANF Dry Disconnect Adaptors keep hazardous chemicals and vapors in-line and out of the environment. Rugged, yet quick and easy to install, the 1600ANF Series is ideal for closed-loop loading conversions.

性能参数:

Available in 1 ?”, 2” & 3” Sizes
Heavy-Duty Construction – Available in aluminum, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel).
Wide Range of Seals Available – Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz?
Female Threads – Can be fitted to either a male pipe end or to a hose fitting
Spring-Loaded Poppet Design – Assures fast closing and a tight seal
Eliminates Threads – One less leak point
Spill Prevention – The poppet-actuated design can only be opened with a Kamvalok? coupling; designed to provide a tight seal when closed.
Easy Access Connection – Provides easy connection access for tank cars, tank trucks, intermodal tanks, and in-process operations.
Connects with Kamvalok? 1700 Series Dry Disconnect Couplings
Easy Cleaning – Can be quickly disassembled
Specifically designed for applications using ANSI flanges



Approvals

AAR Number Description
E129504 1600AN Series Kamvalok Adpater – Threaded
E129505 1600ANF Series Kamvalok Adapter – Flanged
E129507 634B/733DCL Series Kamlok/Autolok Dust Caps
CRN Number Region Description
OA4911.52 Alberta 1.5”, 2”, 3” Aluminum and SST Kamvalok
OA4911.5R1 Ontario 1.5”, 2”, 3” Aluminum and SST Kamvalok





Kamvalok Dry Disconnect Couplings by OPW Engineered Systems

Because of its unique poppet action the OPW Kamvalok Dry Disconnect virtually eliminates spillage of any residual liquid contained within the line after disconnection. Kamvaloks are used at transfer points where product loss is unacceptable.

Learn more about our Kamvalok brand of products

PRODUCT SOLUTIONS
Kamvalok Products

1700DL Series Kamvalok Dry Disconnect Coupler
1700ESL Series Kamvalok Transportation Coupler
D2000 Actuator Series
2173AVN Series Vapor Recovery Fitting
1600AN Series Kamvalok Adaptor
1600ANF Series Kamvalok Railcar Adaptor
