OPW Kamvalok 1700ESL 和1700ES系列输送用接头



OPW输送系列的干式快换接头主要用于输送石油、溶剂和化学制品的采用车载泵送装置的多隔室运输槽车。OPW输送用系列的干式快换接头被公认为本行业的标准产品,主要用于输送石油、溶剂和化学制品的采用车载泵送装置的多隔室运输槽车。

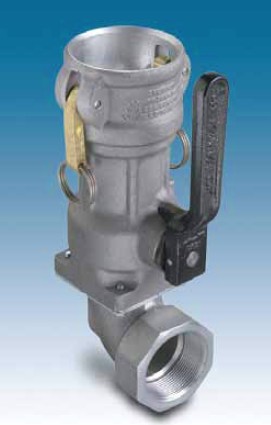

Kamvalok 1700ESL 和1700ES系列输送用接头



Kamvalok 1700ESL 和1700ES系列输送用接头特点

- 提供2”规格
- 铝合金材质
- 可配或不配AutolokTM自锁臂
- 配 有Snap-on主密封的提升阀密封缸。
- 简单凸轮—滑槽设计,带控制杆
- 全方位操作—阴端接头可以连接到阳端接头的任何方向
- 制造符合-高设计、材料和施工质量标准



Kamvalok 1700ESL 和1700ES系列输送用接头优点

- 防止跑料—有助于减少危险性物料输送过程中因连接/脱卸而产生的跑料风险
- Autolok自锁臂—配备的自动锁定机械装置可以提供额外的防护功能,连接时当发出清脆的咔哒声时表明该锁定装置已就位。只需要拉动锁紧环即可打开,解除锁定。
- 全封闭回路装卸操作功能—使用OPW 2173N油气回收干式快换接头,能够将有害液体和气相物料封闭在管线中,防止其进入环境中,从而保护人民免受伤害、财产受到损失。
- 双重保护—OPW Kamvaloks提供从阳端接头和阴端接头两个方向进行自动关闭切断的功能。
- 使用方便—简单的连接/脱卸设计和杠杆操作的内部提升阀结构确保了部件的自由动作和平稳操作。

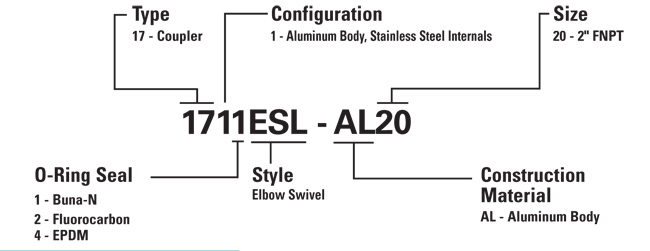

选购指南:
90°弯管/旋转接头

产品系列号
口径规格、描述
1711ES-0200
2” 铝合金, 缩醛塑料, Buna-N 密封
1712ES-0200
2” 铝合金, 缩醛塑料, 氟橡胶密封
1714ES-0020
2” 铝合金, 缩醛塑料, EPDM密封

下面产品或应用都成功使用了Kamvalok接头

Chemical Application
Acetone Tank Cars
Acrylates In Plant
Acrylic Acid
Tank Truck
Acrylonitrile
Tank Cars
Acrylonitrile, MMA, Butyl Acrylate

Allyl Chloride

Allyl Lites

Amines (Various)
Tank Truck
Anthranilic Acid (AA)
Tank Cars
Anthranilic Acid (AA)
Tank Truck
Automotive Paint
In Plant
Benzene
Tank Cars
Benzene
Tank Truck
Butyl Acrylate
Tank Trucks
Butyl Acrylate, Acrylic Acid, Acrylic Monomers

C5 Raffinate
Tank Truck
Crude Acetone
Tank Truck
Crude MBA
Tank Truck
CTLO (coal tar light oil) Tank Cars
Cumene Tank Truck
DCDP Tank Truck
Diesel Exhaust Fluid (DEF) Totes
Dow Therm Tank Trucks
Enserv Totes/trucks
Epichlorohydrin Tank Cars
Ethelyne Oxide
Rail Car
Ethyl Acrylate Tank Cars
Ethyl Acrylate Tank Truck
Ethylene Oxide (EO) Tank Cars
Flex Caustic Tank Truck
Glycol (deicing fluids) Tank Trucks
Hydrogen Peroxide Rail Car
Isoprene Tank Truck
Isopropyl Alcohol Tank Truck
Light Paralysis Oil
Tank Truck
LRO Tank Truck
Lubricating Oils Tank Trucks
Methanol Rail Car
Mixed Alcohol Tank Truck
Monochloroacetic Acid, 80% Solution (MCAA)
Nitirc Acid Tank Truck
Paralysis Tank Truck
Peperzine Tank Truck
Piperylene Tank Truck
Polyol Rail Car
Propylene
Tank Cars
Propylene Oxide (PO) Tank Truck
Propylene Oxide (PO) Rail Car
RTBA Tank Truck
Sour Gasoline Tank Cars
Spent Caustic Tank Truck
Styrene Tank Truck
Styrene Rail Car
Sulfuric Acid (H2SO4), virgin 96% Tank Truck
Tebol 99
Tank Truck
Telene (tobacco herbicide) Totes/trucks
Telone II
Tert-Butyl Hydroperoxide (TBHP) Tank Truck
Trichlorobenzoic (TBA) Acetone Tank Truck
Trichlorobenzoic (TBA) Heavies Tank Truck
WFE Distillate Tank Truck
WFE Feed Tank Truck
WFE Heavies Tank Truck

OPW Kamvalok 1700ESL & 1700ES Series Transportation Couplers
OPW Transport Series Dry Disconnect Couplings

OPW Transport Series Dry Disconnect Couplings are considered the standard of the industry for use on multi-compartment petroleum, solvent and chemical product delivery trucks with an on-board pumping unit.

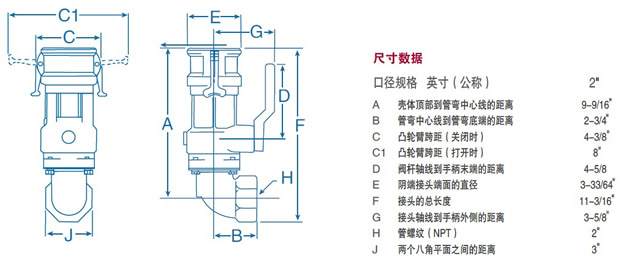

性能参数:

Available in 2”
Aluminum material of construction
Offered with or without AutolokTM Locking Arms
Features Poppeted Seal Cylinder with Snap-on Nose Seal
Simple Cam and Groove Design with Lever Actuation
360° Orientation – coupler can be connected in any orientation onto the adaptor.
Manufactured in compliance with the highest quality standards of design, materials and construction.
Spill Protection - Helps to reduce the hazards involved in the connection/disconnection process of transferring hazardous materials.
Autolok? Locking Arms - Provide added protection with an automatic locking mechanism signaled by a positive click. Uncoupling requires only an easy tug on the lock release.
Provides For Total Closed-Loop Loading Capabilities - When used with the OPW 2173N Vapor Recovery Dry Disconnect coupling protects people and property from dangerous and potentially costly exposure by keeping hazardous liquids and vapors in-line and out of the environment.
Dual Protection - OPW Kamvaloks provide automatic closure from both directions - the coupler and the adaptor.
Ease of Use - The simple connection and disconnection design and lever actuated internal poppet configuration makes this the first choice for liquid transfer operations.





Kamvalok Dry Disconnect Couplings by OPW Engineered Systems

Because of its unique poppet action the OPW Kamvalok Dry Disconnect virtually eliminates spillage of any residual liquid contained within the line after disconnection. Kamvaloks are used at transfer points where product loss is unacceptable.

Learn more about our Kamvalok brand of products
