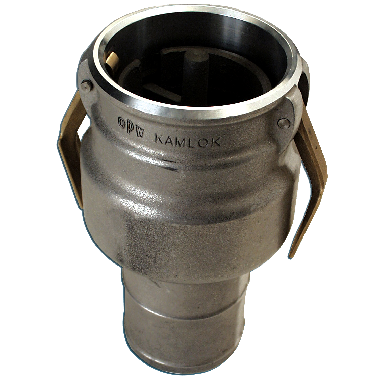

OPW 633CPP 油气回收气相接头接头
Vapor Couplers

现场测试表明,Civacon的633CPP油气回收气相接头接头将整个接头的压降降低了50%。证明633 CPP接头的设计能够帮助您安全地满足操作需求,同时提供卓越的性能。*在以600 GMP(加仑/分钟)同时填充三个隔间的同时,实现了Civacon 633CPP/Civacon 634LHV接头从12“6”(以英寸/水计)的压降。Field tests show Civacon's 633 CPP Vapor Coupler reduces pressure drop across the fitting by 50%. Proof positive that the 633 CPP Coupler is engineered to help you safely meet operational demands, while delivering superior performance.*Pressure Drop from 12" 6" (measured in inches/water) across Civacon 633CPP/Civacon 633LHV coupling realized while simultaneously filling three compartments at 600 GMP (gallons per minute)。



功能和优点

-633CPV提升式软管柄连接器用作止回阀,直到连接到运输油气回收气相接头回收适配器
-633CPP与633CPV类似,不同之处在于它在止回阀上包含Buna-N密封,并且它包括一个探针,用于打开633LVB上的提升阀
-633CV软管柄连接器包括一个探针,用于启动633LVB和611T中的提升阀



OPW 633CPP 油气回收气相接头接头
Vapor Couplers







Features & Benefits

- The 633CPV poppeted hose shank coupler acts as a check valve until connected to the transport vapor recovery adaptor
- The 633CPP is similar to the 633CPV except it contains a Buna-N seal on the check valve and it includes a probe to open the poppet on the 633LVB
- The 633CV hose shank coupler includes a probe that actuates the poppet in a 633LVB and 611T

Part Numbers and Drawings

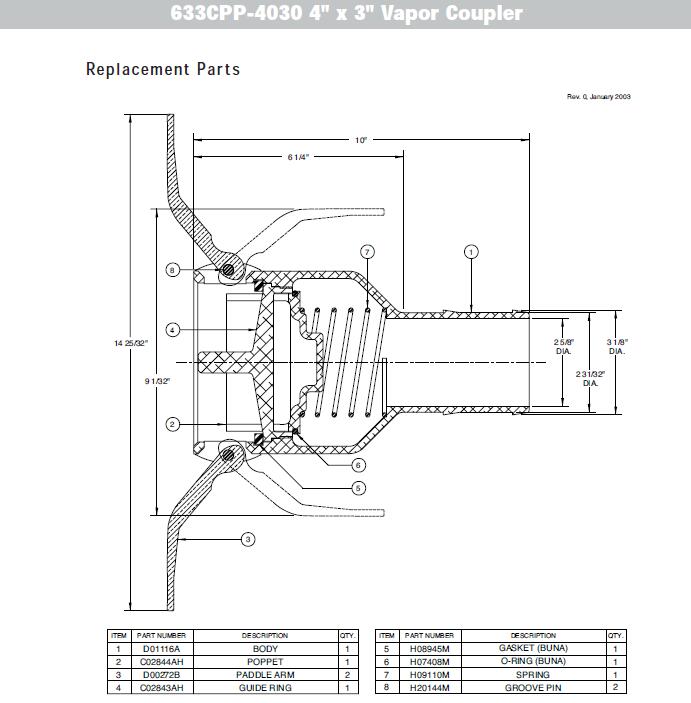

- 633CPP-4030 4"x 3" Vapor Kamlok Coupler w/Poppet

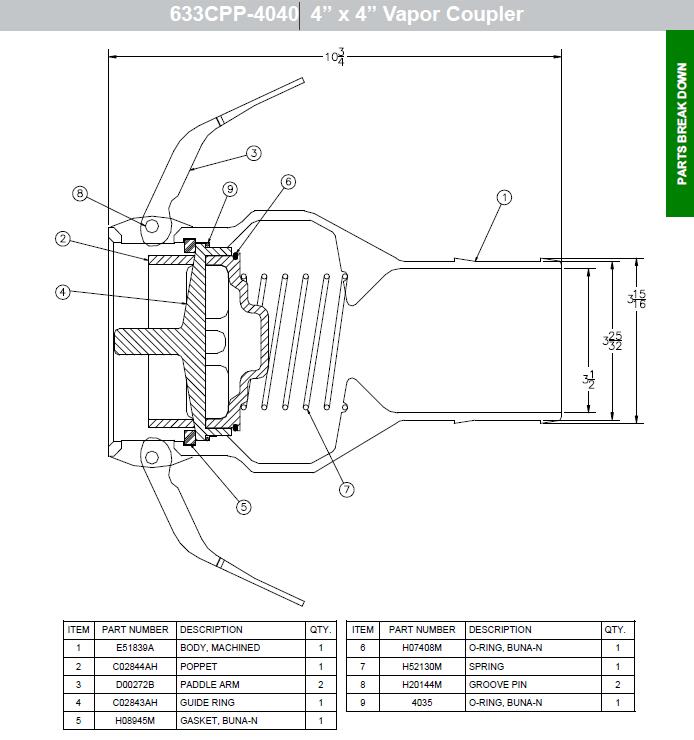

- 633CPP-4040 4"x 4" Vapor Kamlok Coupler w/Poppet
- 633CV-AL4030 4"x 3" Vapor Kamlok Coupler w/o Poppet

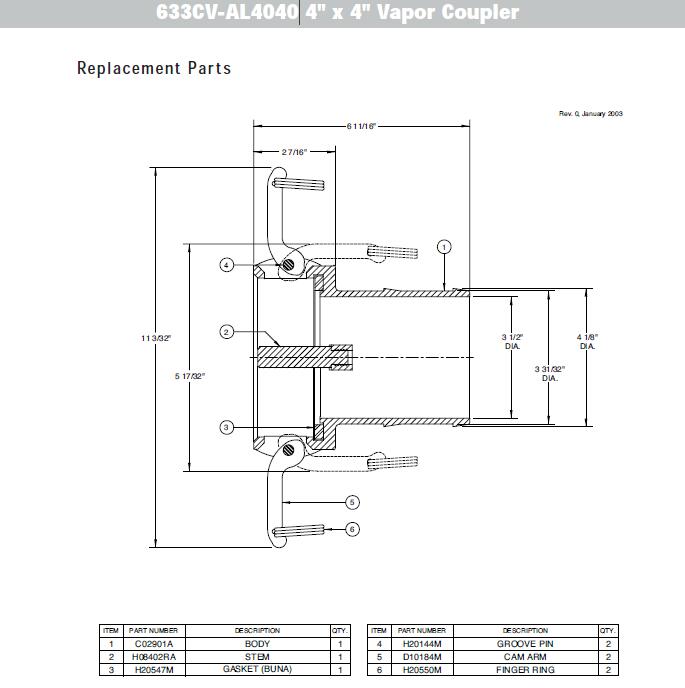

- 633CV-AL4040 4"x 4" Vapor Kamlok Coupler w/o Poppet

Brochures Parts Breakdown Installation Manuals

- Vapor-Adaptor Parts Drawing
- Vapor-Adaptor Parts Breakdown
- 633CPP-4030 4"x 3" Vapor Kamlok Coupler w/Poppet
- 633CV-AL4040 4"x 4" Vapor Kamlok Coupler w/o Poppet
- 633CV-AL4040 4"x 4" Vapor Kamlok Coupler w/o Poppet

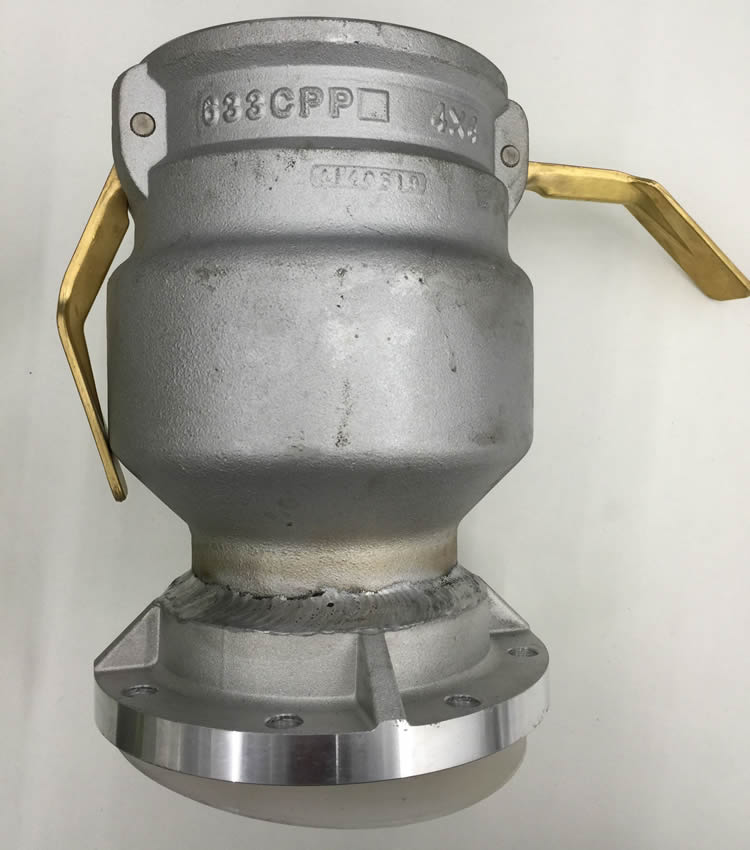

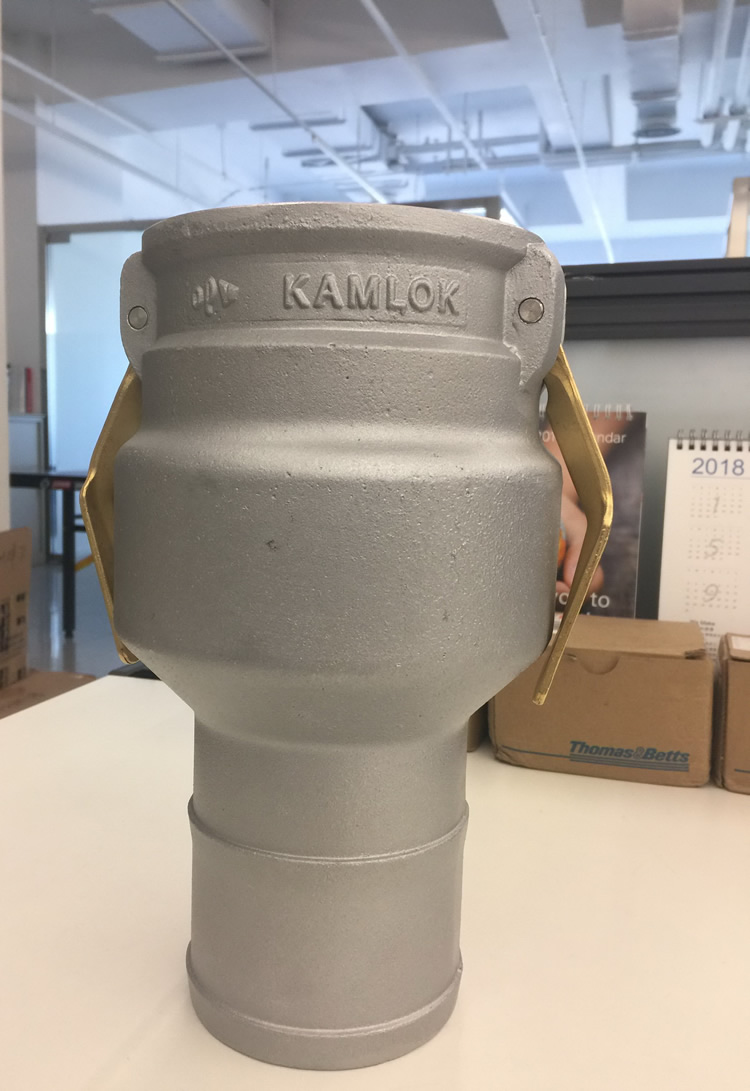

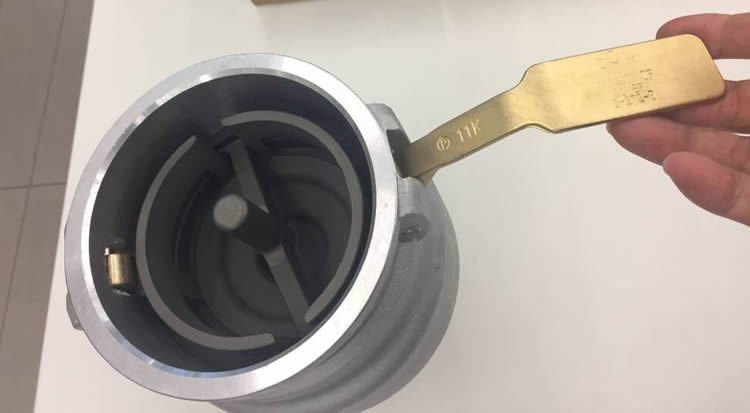

- 油气回收气相接头实物照片分享
