Hiltap 3TL系列全用途高性能的快速接头
Hiltap 3TL系列化学制品、石油化学产品和制药行业应用高性能的快速接头
Hiltap 3TL SERIES Transfer Loading Safety Quick Coupling for the chemical, petrochemical and pharmaceutical industries
3TL系列安全输送装载型快速接头 :
新型密封技术适用行业包括化学制品、石油化学产品和制药。
3TL SERIES Transfer Loading Safety Quick Coupling,
3TL输送加载系列是一种全用途高性能的快速接头，它是针对大跨度温度范围应用环境而设计的防泄漏密封。该接头采用的与管线直径无差异化设计因此对液体流速不会产生阻碍。当温度发生变化时可重复使用的“金属对金属”式楔形密封组件会进一步提高密封效果。固定环可确保安全泄掉所有的残余压力。HT3-TL Transfer-Loading Series is an all-purpose high-performance quick coupler designed for leak-proof sealing through a wide range of temperatures. The design offers a non-restrictive flow with no variation in pipe diameter. The reusable metal-to-metal wedge-sealing components further enhance the seal as temperature changes are encountered. The retaining ring ensures safe venting of any residual pressure.

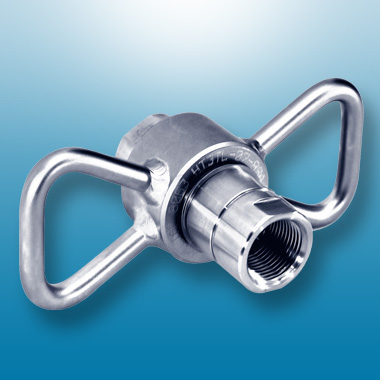

Hiltap 3TL SERIES Transfer Loading Safety Quick Coupling
pdf catalog资料下载
3TL系列安全输送装载型快速接头特点和优点
- 设计用于取代锤击式接头和传统的CAM锁紧接头。

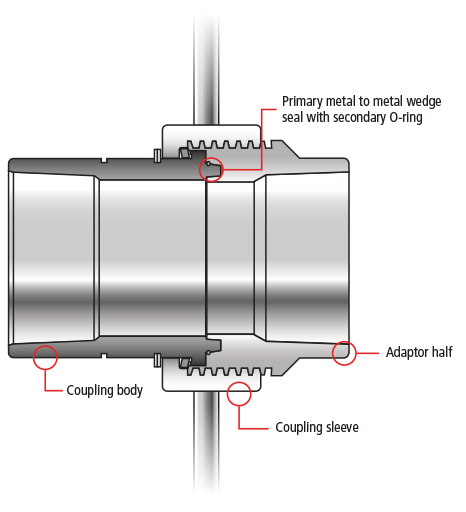

- 主密封采用可重复使用的“金属对金属”式楔形密封，并配备次一级的环境O型密封圈。
- 对液流无阻碍特性，便于更快进行联接。
- 具有独特的可自动排放残余压力的安全特性。
- 只需很小的扭力就可上紧到允许的额定压力。
- 设计和测试是遵照ASME B31.3标准完成的。
- 规格：从3/4"到6"。
- 材料：316不锈钢或碳钢。
- 结构紧凑，可与所有类型的联接方式相结合，包括螺纹型、对焊型或承插焊端面。
- 有各种不同的套筒把手可供选择。
3TL SERIES Transfer Loading Safety Quick Coupling

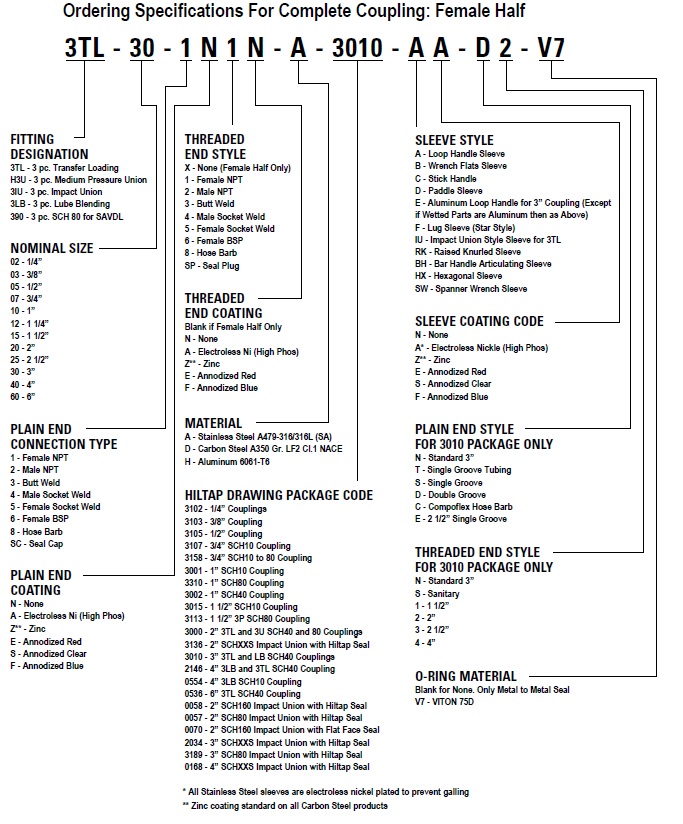

3TL系列安全输送装载型快速接头订购指南
3TL SERIES Transfer Loading Safety Quick Coupling
Applications
Perfect for situations where connections of high or low temperatures and pressures are experienced – in-plant, through plant, out-of-plant.
Cryogenics
Steam
Oil
LPG
LNG
Acids
EO
Chlorine
Ammonia
Paints
Fracking
Metal Alkyls
And More
- 3TL系列安全输送装载型快速接头

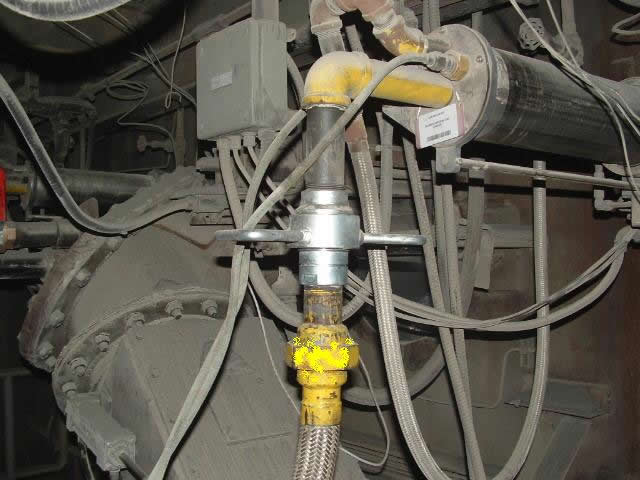

产品应用案例图片
