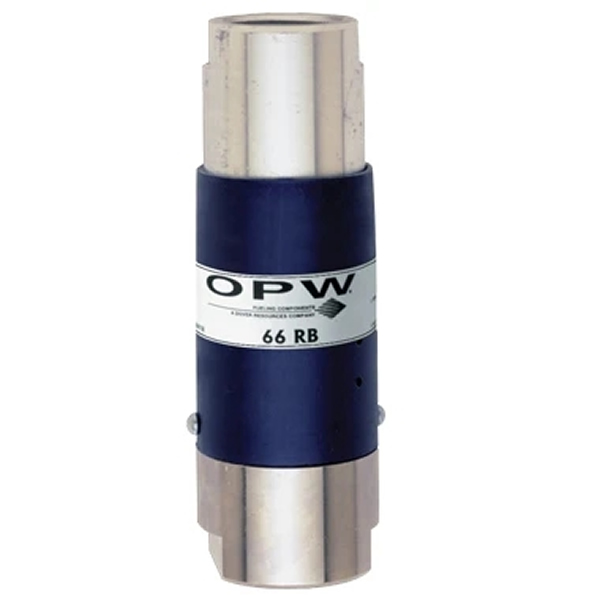

OPW 66RB 1” 可重复使用拉断阀 OPW 66RB 1" Reconnectable Breakaway
OPW 66RB-2000 Reconnectable Breakaway



66RB-2000可重复使用拉断阀是设计用于当今的高流量加油市场。该阀门安装于加油机软管上,在-大拉力为350磅的情况下,66RB阀门会自动脱离。当66RB脱离后,两端阀门自动关闭,避免流体燃料从两端软管流出。

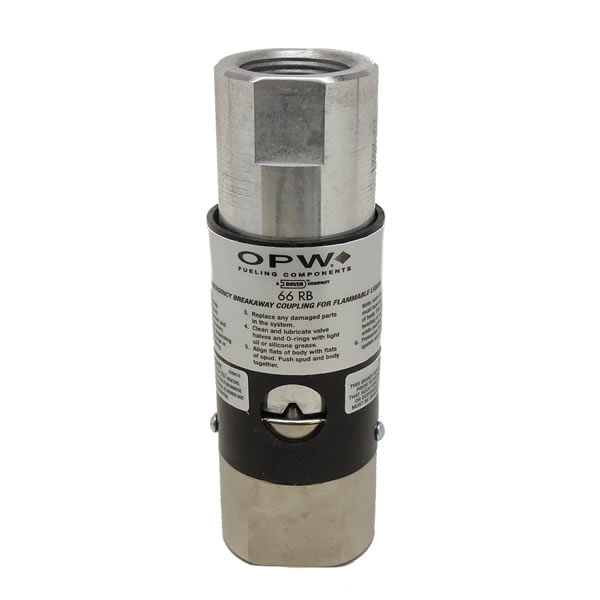

OPW 66RB 1” 可重复使用拉断阀 OPW 66RB 1" Reconnectable Breakaway
OPW 66RB-2000 Reconnectable Breakaway

为了实现66RB-2000的正常功能,正常的安装方式是将该阀安装于一根不短于12"的胶管上,例如OPW 66H。

材料
阀体:铝合金
弹簧:不锈钢
阀套:HPPE
密封件:Viton
提升阀:铝合金
规格
产品代号 尺寸 重量
英镑 公斤
66RB-2000 66RB-2000 1.14 0.25



性能特点

拉断力:66RB的-大拉断力设计为不超过350磅
易于重新连接:只须简单的将分离的两部分阀体挤压到一起即可连接起来,所需挤压力大约为15磅。
该拉断阀的外面装配有持久耐用的塑料阀套它可有效地保护提升阀与密封件的表面在分离的过程中免受挤压。
低压降:独特的单向阀门设计,在高流速、高流量时尽可能使压降变为-低。
工作压力:-大工作压力设计为50PSI。
获得UL和ULC全面认证,





Description
The 66RB-2000 Reconnectable Breakaway is designed for use in today’s truckstop and high-volume markets. Intended for installation on fuel dispensing hoses, the 66RB will separate at a maximum force of 350 lbs. Upon separation, the integral check valves close, stopping the flow of fuel and limiting any fuel spillage from either hose end. For proper operation on high-hanging hoses, the OPW 66RB must always be installed using a “straightening hose” with a minimum length of 12", such as the OPW 66H. For low hose applications, the 66RB should be installed downstream of the retractor cable.

Features & Benefits
UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends. See specific listings.
Pull Force - the 66RB will break away with a pull force of no more than 350 lbs.
Easily Reconnected - after relieving line pressure, simply push coupling halves together until latched. Reconnection force is approximately 15 lbs.
Protected Coupling and Poppet - the breakaway's poppets and sealing surfaces are protected from impact during separation by a durable plastic sleeve.
Low Pressure Drop - the integral check valve design allows for minimal pressure drop for faster, high-volume fill-ups.
DESIGN WORKING PRESSURE
50 psi (3.45 bar) maximum pressure.
Materials
Body: Aluminum
Sleeve: HDPE
Seals: Viton?
Spring: Stainless steel
Poppet: Aluminum
Listings & Certifications

Catalog Page
66RB 1" Reconnectable Breakaway
Installation Instructions
66RB Installation Instructions - English
