API罐车接头 API Tank Truck Adaptor - 891 Series

两片式铝质可旋转表面硬化接头采用计算机辅助设计，以确保可靠的使用和更长的寿命. Civacon891系列API底部灌装接头经精确设计和制造可以与任何接续装置配合使用，物有所值，性能优良。其两片式铝合金结构、可旋转的硬质附层接头能确保可靠的使用和较长的寿命，一体化的提升阀及醛缩树脂轴承能使其开闭非常平滑。891还有众多的针对广泛用途的可选件，可以和具体的底部灌装需求及不同条件相匹配以提高操作性能、缩短停工时间、取得最大的效益。

特性
- 平底高流量API接头，可以减少产品的滞留。全新人体工学设计的轻质轻质铝合金手柄是所有CivaconAPI接头的标配
- 高流量、低滞留的设计
- 精确制造，可实现长期可靠操作
- 采用200型联锁安装
- 不需要从贮罐上拆下API接头即可方便更换提升阀密封圈
- 轻质、高强度
- 内部采用不锈钢以保证强度和耐用性.符合API1004和EN13083要求
- 可直接替换861和897系列的API接头。有可开启式和不可开启式的型号供选择·可用于柴油、生物柴油、汽油、乙醇和甲醇重量仅为6kg

订货规格
带手柄的API接头
891A
891BA
开启式API接头，带铝质手柄，两片式设计，接头前端表面作硬化处理
开启式API接头，带铝质手柄和视窗，两片式设计接头前端表面作硬化处理
无手柄的API接头
891N
891NB
不可开启式API接头，两片式设计.接头前端表面作硬化处理
不可开启式API接头，带视窗，两片式设计接头前端表面作硬化处理

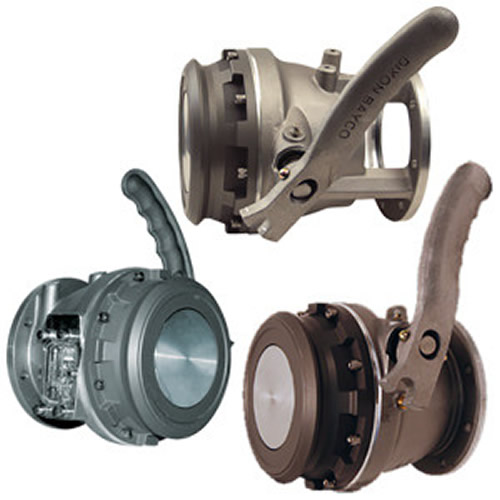

API Tank Truck Adaptor - 891 Series

CIVACON’s API bottom loading adaptors are precisely engineered to match standard loading couplers and increase service performance.

Features & Benefits
Designed in Accordance with API RP 1004 and EN 13083
Two Piece lightweight aluminum construction for maximum strength and weight reduction.
4 Inch TTMA mounting flange
Nominal size 4 inch or DIN 100
Rotatable hard-coated nose piece for maximum service life
Flat Bottom ensures complete drainage
Minimum number of internals to minimize pressure drop and improve flow rate
Bushed running surface for efficient operation
Stainless Steel internals for maximum service life
Viton GFLT seals
Compatible with diesel, bio diesel, gasoline, ethanol and methanol
Heavy duty poppet with an acetal resin bearing for smoother opening characteristics
Easy-grip aluminum lever
Mounting lugs for model 300/301 air interlock valve
Grease nipple on handle for easy maintenance

Model Numbers
891N - Non-Openable API Adaptor
891BA - Openable API Adaptor w/ Aluminum Handle and Sight Glass
891BA-LK - Openable API Adaptor w/ Aluminum Handle, Sight Glass & Pneumatic Lock
891A - Openable API Adaptor w/ Aluminum Handle
891NB - Non-Openable API Adaptor w/ Sight Glass

Repair Parts
Repair Parts
861HRK-ALUM - Handle Repair Kit for 861 Series API Adaptor
861ORK - O-Ring Repair Kit for 861 Series API Adaptor
891BRK - Sight Glass Repair Kit 891& 861 Series API Adaptors
891HRK - Handle Repair Kit for 891 Series API Adaptor
891ORK - O-Ring Repair Kit for 891 Series API Adaptor
891SRK - Shaft Repair Kit for 891 Series API Adaptor
11345M - Blank-Off Kit for Sight Glass

Downloads
API Tank Truck Adaptor-891 Catalog
API Bottom Loading Adaptor Brochure
API Lock Assembly Brochure
API Bottom Loading Adaptor Part Drawings
891BA Openable API Adaptor w/Aluminum Handle and Sight Glass
891A Openable API Adaptor w/Aluminum Handle
891NB Non-Openable API Adaptor w/Sight Glass
891N Non-Openable API Adaptor
891BA-LK Openable API Adaptor w/Aluminum Handle, Sight Glass & Pnuematic Lock
API Installation Maintenance Manual
891HRK-RM Handle Repair Kit Installation Maintenance Manual
