Civacon高流量海底阀
Civacon通用高流量海底阀设计用于机械拖车操作
Civacon MaxAir 系列海底阀有着精良的设计，在液体流动通道中没有活动部件，实现了高流速、高落差，保证了最大的效益。活塞上的三重密封确保了最大的可靠性，并减少了维护。铸件经过精心设计减轻了重量、改善了流动性，并容易安装在比较紧凑的位置。
通用高流量海底阀符合HM183标准在苛刻的环境中经现场测试，可以承受-40C到66C的温度。
所有MaxAirM海底阀都带有一个紧急切断槽，出厂还装有热(熔)安全塞，以及一个当气控失效时用以手动打开的插拔螺杆。这种耐用开孔的设计缩短了装料、卸料、维护的时间，因此，装备了MaxAir两的卡车可以有更多的时间执行运输。
特性
- 可与4英寸TTMA油罐兼容
- 适用于所有制造商的标准机械操作
- 减少复管排泄管路回流到相邻罐体的问题- 可选排出滤网和线缆安装架(需另外购买)
- 可选安装孔槽，简化安装
- 铝质壳体，可选择的密封材料
有带5x4英寸弯管或直管出口或法兰出口- 可用于柴油、生物柴油、汽油、乙醇和甲醇。有多种配置，以实现标准兼容性，便于安装(见下页图)
Civacon’s Universal High Flow Emergency Valves are designed to be used for Mechanical Trailer Operations
The Civacon? Universal Series High Flow Emergency Valves have been designed with no moving parts in the flow path for superior flow rates, faster drops and maximum profits. Castings have been streamlined for all configurations to decrease weight, improve flow and fit easier into those tight installations.
Universal High Flow Emergency Valves conform with HM183 standards The Universal High Flow Emergency Valve has been field tested in harsh environments and will withstand temperatures from –40?F to 150?F (-40?Cto 66?C).
All Emergency Valves feature a frangible connection at the shear groove. This durable, open-bore design reduces loading, unloading and maintenance time so Civacon? equipped trucks spend more time on the road.

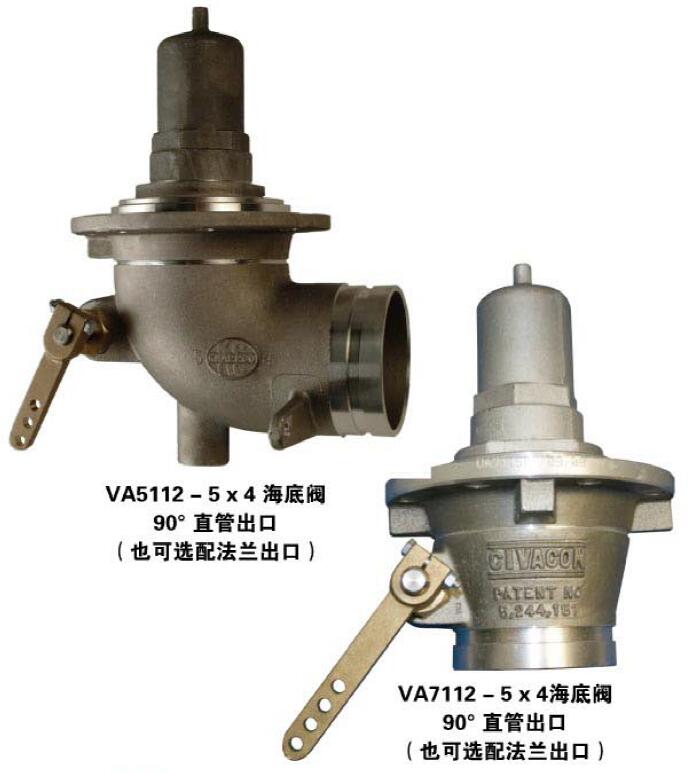

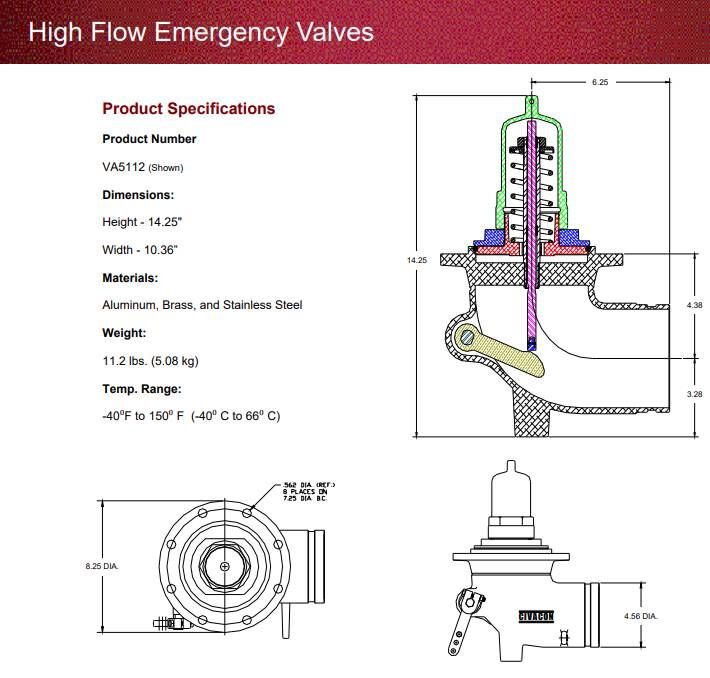

VA5112 - 5 x 4 Emergency Valve
90° Victaulic Outlet
(Also Available w/ Flanged Outlet
VA7112 - 5 x 4 Emergency Valve
Straight Victaulic Outlet
(Also Available w/ Flanged Outlet
Features and Benefits
- Compatible with 4” TTMA sump applications
- Compatible with all manufacturer’s standard mechanical operators
- Reduces backflow problems into adjacent compartments on manifold discharge plumbing
- Optional drain screen and cable mounting bracket (Sold Separately)
- Optional slotted mounting holes simplify installation
- Aluminum housing with a choice of seal materials
- Available as a 5” x 4” elbow or straight with Victaulic or flanged outlets.
- Compatible with diesel, biodiesel, gasoline, ethanol and methanol

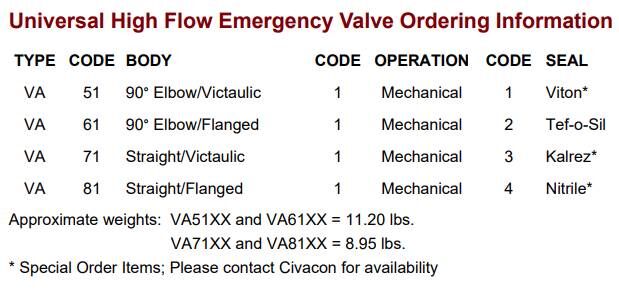

- Available in a variety of configurations for standard compatibility and easy installation (see chart on back)
|
