OPW 5000 Series Bus/Heavy-Duty Truck Nozzles
CNG加气枪 OPW 5000系列巴士、重型货车加气枪

应用行业：交通

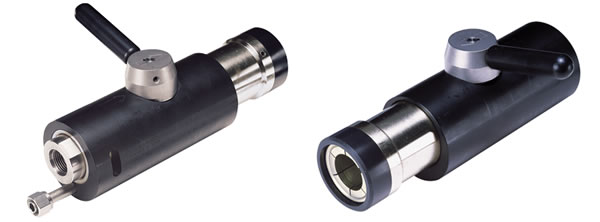

OPW 5000系列（大流量）加气枪

OPW 5000系列巴士、重型货车加气枪（需要与CL50系列插座一起使用）。 OPW 5000系列加气枪适用于超大流量的公共或私营加气系统。可用于对长途汽车、重型货车进行自助的快速加气。 所有OPW NGV型加气枪都严格符合相关行业规范对加气设备安全和效率的要求。

OPW 5000 Series Bus/Heavy-Duty Truck Nozzles

性能特点
　

用户操作简单：在枪和插座连接后，旋转把手180°，卡扣会牢固的卡牢插座，通过内部的三通阀去调整加气，只有与插座连接稳牢，气枪才会开始加气，当加气完成后，转动把手90°，即可停止加气并自动排气，之后即可轻松拔枪。

- 5000系列无需后端三通排气阀，可直接和加气管相连：可应用于公共或私营的自助加气站，无需加气员服务。

- 快速、大流量的加气：独特的内部密封材质可应用于快速加气环境，可快速对中等储气车进行加气。

- 直接排气CT5000S：通过3/8″不锈钢排气管连接于远程排气管道或加气机上端的排气口，在拔枪前将捕获的余气排放，排放余气是安全环保的，同时此额外的措施使加气站滞留的CNG最小化，也减少了排气噪音和避开气味。

- 卡扣技术的应用：特殊的卡扣设计保证了CNG加气过程中高压、频繁的连接和断开，接触的压力被均匀的分布在插座的接触面上，使二部件接触磨损降低到最低。

- 人性化的设计：使用者可简单造作即可与插座稳固耦合并加气，绝缘的外套保护使用者免受温度的伤害。

- 持久的寿命设计：在恶劣的加气环境下，黄铜材质的结构具有优良的抗腐蚀性。

- 避免误操作：通过独特的凸轮设计来带动前后开关模块，避免了误操作而导致气枪立即开启或关闭。

- 每个产品都经过严格的气密测试，并打印对应的检验编号。

- 获得认证：ASME压力容器认证、德州RCT、以及和TUV相互认可的德国压力容器认证。

产品材质：

枪体：黄铜和不锈钢
内部部件：不锈钢和黄铜
密封：特殊配方的聚合物和弹性体，适用于高压的NGV环境。
卡扣：不锈钢材质

产品规格:

最小流量：5000 SCFM （标准立方英尺）在3000 psid（压差）
温度范围：-40°C至85°C(-40°F至185°F)
重量： 3.98 kg. (8.77lbs.)
流动系数： 2.75
设计压力： 4500 psi (310 Bar)

OPW 5000 Series Bus/Heavy-Duty Truck Nozzles

OPW 5000 Series nozzles are designed for extremely high-flow public and private CNG fueling systems. Applications include quick-fill, self-service fueling of transit buses and large trucks.

Materials
Body: brass
Jaws: stainless steel
Seals: specially formulated polymers and elastomers specific to high pressure NGV applications
Features & Benefits
High-Flow/Fast-Fill Capability - to provide quick fueling of large storage vehicles. Internal seals are specially designed to meet the demands of fast-fill NGV fueling.
User-Friendly Single-Action Operation - entire fueling operation is initiated by simply engaging nozzle and receptacle with a single 180o rotation of the handle. This automatically secures the nozzle jaws onto the receptacle and activates a system of three internal valves that regulate fueling. The nozzle will not dispense gas until securely engaged onto an appropriate receptacle. When fueling is completed, rotation of the handle to the disconnect position automatically stops the flow of gas into the nozzle, vents the trapped gas and releases the nozzle from the receptacle. The 5000 Series nozzles connect directly to the hose, eliminating the need for a three-way valve. They are designed for public or private self-service applications, eliminating the need for a trained attendant.
Directed Vent - directs the gas vented at disconnect and directs it out of the nozzle via a 3/8" stainless steel tubing connection (requires -6 compression adaptor), which can be piped to a remote venting location or back to the upstream side of the compressor. Directing the vent gas is environmentally desirable and will provide an added measure of safety by minimizing the amount of gas present at the filling site. It also reduces vent noise and escaped gas smell.
Jaw-Lock Technology - designed specifically for the frequent coupling and uncoupling of the high-pressure gas connections of NGV fueling. Forces at the contact point are distributed over the entire surface area of the receptacle.
Ergonomic Design - one simple and convenient motion ensures connection and dispensing by all users. Insulated jacket provides thermal protection for operator’s hand.
Durable Construction - brass and stainless steel construction provides excellent corrosion resistance in the harsh refueling environment.
Tamper Resistant - specially designed cam system actuates the front and rear valve module. Any tampering with the valve will result in an immediate shut-off of the dispensing process.
Individually Leak Tested and Inspected with Traceable Serial Numbers
Listings and Certifications
Agency Listings - ASME Pressure Vessel Registered, Railroad Commission of Texas, Special Application of German Pressure Vessel Available at Additional TUV cost.

Catalog Pages
CNG dispensing equipment
Technical Specifications
Minimum Flow Rate: 5,000 SCFM @ 3,000 psid
Temperature Range: -40° F to 185° F (-40° C to 85° C)
Weight: 8.77 lb. (3.98 kg)
Cv: 2.75
MAWP: 4,532 psi (312.5 bar)
Dimensions - CT5000S
