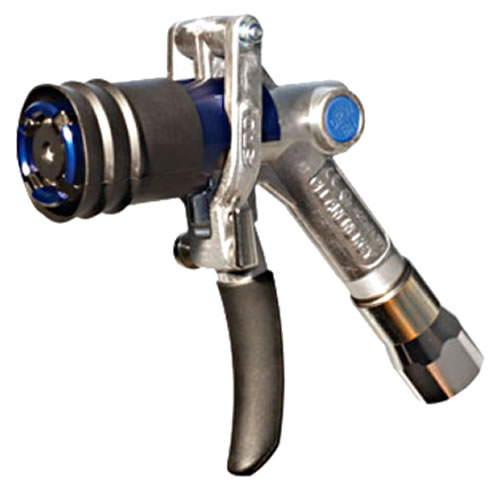

OPW OT300 系列LPG自动加气枪
Autogas OT300 and OTA-300A Series LPG Nozzle
LPG加气枪
应用行业:交通
OT300加气枪 OPW OT300 系列LPG自动加气枪
OT300是OPW公司意大利接口的B/N加气枪,入口是1英寸的NPT螺纹。 所有OPW B/N型LPG加气枪都严格符合相关行业规范对加气设备安全和效率的要求。The OPW Autogas OTA-300 and OTA-300A are designed for the Italian-Type coupling.Nozzle inlet has 1" BSPP threads.
OTA-300 and OTA 300A Series LPG Nozzle
T300加气枪 OPW OT300 系列LPG自动加气枪
主要性能特点
简单顺畅的造作:整个加气过程只需通过勾动扳手即可顺利将气枪与插座耦合。
自锁功能:在加气过程中,气枪会被牢固的锁在插座上,除非推开扳手上的放气扳机。
人性化设计: 绝缘的护套很好的保护了造作者免受高速流动的LP气体产生的温度伤害。特殊的设计使枪与插座耦合力降低到-低。
持久的寿命设计:在恶劣的加气环境下,具有承压性能的铜、铝、不锈钢材质保证了结构优良的抗腐蚀性
方便使用:和具有360°单平面旋转的旋转接头一起使用,造作将更加方便。
安全使用:只有确定与合适的接头连接,气枪才会开始加气,一经连接,不会轻易松开,直至造作者进行松开操作。
每个产品都经过严格的气密测试,并打印对应的检验编号。
可更换的橡胶盖:使被排放的LP气体从操作扳手的边侧排出。
Features & Benefits
- User Friendly Single-Action Operation – Entire fueling operation is initiated by simply engaging nozzle to the receptacle with a single squeeze of the hand.
- Hammer-Lock Technology – Maximum durability. Designed specifically for frequent coupling and uncoupling.
- Ergonomic Design – Insulated handle protects operator from temperature effects created by high flowing LP gas. Minimal force required to engage nozzle.
- Durable Construction – Heavy-duty brass, aluminum and stainless-steel construction provides excellent corrosion resistance in the harsh fueling environment.
- Ease-of-Use – Incorporates a single plane 360 degree inlet swivel.
- Safety – Will not dispense gas until securely engaged onto an appropriate receptacle. Once engaged, it will not disengage until released by operator.
- Individually Leak Tested and Inspected with Traceable Serial Numbers.
- Replaceable Rubber Cover – Deflects venting LP gas away from operator's hand.
产品材质:
枪体:铝
内部材质:铜和钢
密封:特殊配方的聚合物和弹性体,适用于LPG加气状态。
外部材质:铝、不锈钢、铜
产品说明:
-大工作压力: 350 psi
脱开时放气量:4.3CC
重量: 1.4 kg
接口形式: 意大利式接口形式
温度范围:-40°C至85°C(-40°F至185°F)
Technical Specifications
MAWP: 350 psi (24 bar)
LPG Discharge on Disconnect: 1 cm3 of liquid LPG
Weight: 3.08 lbs. (1.40 kg)
Locking Release: Trigger on lever
Coupling Style: Italian Style
Temperature Range: -40° F to 185° F (-40° C to 85° C)
Technical Specifications
- Maximum Operating Pressure: 350 psi (24 bar)
- LPG Discharge on Disconnect: 4.3 cc
- Weight: 3.08 lbs. (1.40 kg)
- Locking Release: Trigger on lever
- Coupling Style: Italian Style
- Temperature Range: -40° F to 185° F (-40° C to 85° C)
Also available in brass models. Materials
Body: aluminum
Internal Components: brass and steel
Seals: specially formulated polymers and elastomers specific to LPG applications
External Components: brass, stainless steel, anodized aluminum

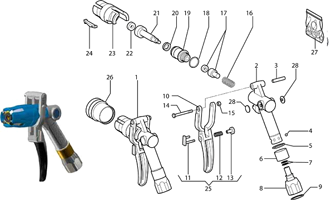

Dimensions
# |
Part # |
Name |
Qty |
1. |
T3 |
Complete Nozzle w/ alum separator |
1 |
|
T3B |
Complete Nozzle w/ brass separator |
1 |
|
T3B-A |
Complete Nozzle w/ brass separator |
1 |
2. |
OT301 |
Body |
1 |
3. |
OT302 |
Bushing |
1 |
4. |
OC001 |
Ball |
6 |
5. |
OC005 |
Flexible Ring |
1 |
6. |
OT303 |
Inner Frame |
1 |
7. |
OC010 |
Ring |
2 |
8. |
OT304 |
Junction |
1 |
9. |
OC011 |
Ring |
1 |
10. |
OT305 |
Lever |
1 |
11. |
OT306 |
Fork |
1 |
12. |
OT307 |
Spring |
1 |
13. |
OT308 |
Push Button |
1 |
14. |
OC030 |
Screw |
1 |
15. |
OC050 |
Nut |
1 |
16. |
OT309 |
Spring |
1 |
17. |
OT320 |
Complete Valve 1) |
1 |
18. |
OC012 |
O-Ring 1) |
1 |
19. |
OT312 |
Head 1) |
1 |
20. |
OC013 |
Gasket 1) |
1 |
21. |
OT313 |
Piston 1) |
1 |
22. |
OT314 |
Gasket 1) |
1 |
23. |
OT315 |
Sleeve ALUM |
1 |
|
OT315B |
Sleeve BRASS |
1 |
24. |
OT316 |
Hammer |
4 |
25. |
OT317 |
Complete Fork |
1 |
26. |
OT420 |
Flexible Dust Cover |
1 |
27. |
OT319 |
Set Of Gaskets |
1 |
28. |
OT324 |
Disc |
2 |
|
OT3KIT |
OT3 KIT ( 1) included) |
|
|
