CIVACON插头和导线组件 Civacon Plug & Cord Set
CIVACON插头和导线是与接线盒一起将装车控制器连接到终端的运输槽车上。有两种基本类型：光学型（蓝色、6针）和热感应型（绿色、8针）。Plug and Cord Sets CIVACON? brand plugs and cords are used with junction boxes to connect the overfill-detection monitor to the tank transport at the terminal. Basically, there are two types of systems: optic (blue, 6-pin) and thermistor (green, 8-pin).
CIVACON插头和导线组件 Civacon Plug & Cord Set PDF
Plug & Cord Sets
Civacon Plug & Cord sets for your your terminal loading systems offer safety, reliability, corrosion resistance and long product life-cycle. They are also very easy to use and handle.
Order Guide

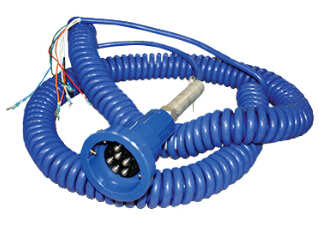

- Optic Plug & Cords
- 7100-7100, Optic plug with 30’ 10-conductor coiled cord
- 7120-7120, Optic plug with 30’ 10-conductor coiled cord and 7-pin breakaway plug
- 7100SR-7100, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement
- 7120SR-7120, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement and 7-pin breakaway plug
- 7190S-0020, 7100-7100 Optic plug with 30’ coiled cord and 7500-7500 junction box
- 7120-7120 Optic Breakaway Plug with 30’ coiled cord and 7540-7540 breakaway junction box

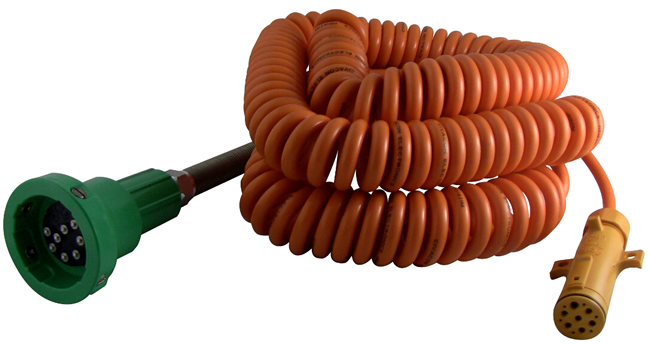

- Thermistor Plug & Cords
- 7300-7300, Thermistor plug with 30’ 10-conductor coiled cord
- 7300C-7300, Thermistor plug with 30’ 10-conductor coiled cord, CANADA ONLY
- 7300SR-7300, Thermistor plug with 30’ 10-conductor coiled cord for Scully replacement
- 7320-7320, Thermistor plug with 30’ 10-conductor coiled cord and 13-pin breakaway plug
- 7320SR-7320, Thermistor plug with 30’ 10-conductor coiled cord for Scully replacement and 13-pin breakaway plug
- 7390S-0020, 7300-7300 Thermistor Plug with 30’ 10-conductor coiled cord and 7500-7500 Junction box
- 7320-7320 Thermistor Breakaway Plug with 30’ 10-conductor coiled cord, 13-pin breakaway plug and 7510T-7510 Junction box
- 7320SR-7320 Thermistor Breakaway Plug with 30’ 10-conductor coiled cord for Scully replacement, 13-pin breakaway plug and 7510T-7510 Junction box
- Plug & Cord Junction Boxes and Deadman Switch
- 7500-7500, Junction Box for Optic, Thermistor and Ground verification Plug & Cord Sets (Non-Breakaway)
- 7540-7540, Junction Box with 7-pin socket for Cane Probes or Breakaway Optic Plug & Cord Sets
- 7510T-7510, Junction Box with 13-pin socket for Breakaway Thermistor Plug & Cord Sets
|
