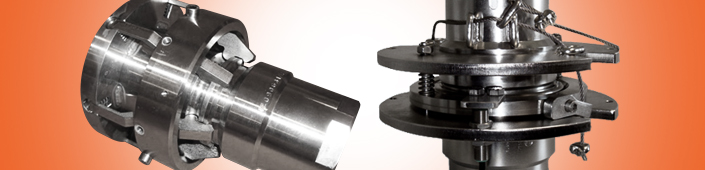

OPW NTS Series Safety Breakaway Coupling安全紧急拉断装置
Safety Breakaways 安全拉断阀
OPW安全拉断阀

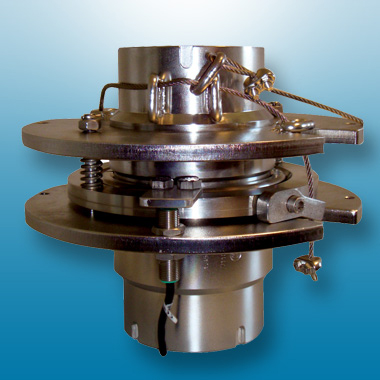

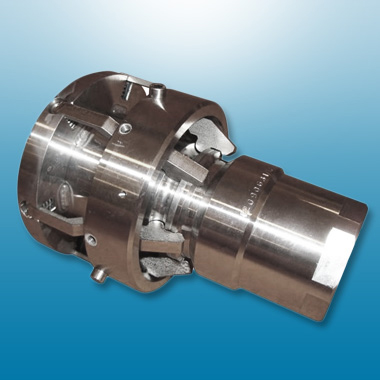

拉断阀是安全运输危险和非危险品的重要元件。OPW 产品能确保液体、气体和粉末介质的安全运输。从而保护装载/卸载系统免受惨重损失 并大大减少了代价昂贵的故障停机时间。 该拉断阀尤其应用在船、登岸船、固定接收站点、罐车和轨道车的装卸系统中。与全球领先的石油、天然气和石化工业企业进行密切的合作。 全球石油、天然气和石化行业对KLAW所提供的可靠解决方案和对人员、设备和环境的保护已建立了长期稳固的信任。 OPW一共有三种型号的船用拉断阀, 拉绳型的是NTS-SZ,爪擒式的是NTS-PU,专用在低温上的是NTS-CC。The NTS Series Safety Breakaway Coupling from OPW represents the best available technology to protect your equipment, your people and the environment. Whether you are loading tank trucks, railcars, barges or ships, with liquid or gas; the NTS is designed to separate in the event of an unintended pull-away. Non-return valves positively shut both ends preventing spills and protecting the loading station at the same time.

Want more? The NTS can also be reassembled without tools or spare parts. You're back up and running in a matter of minutes.



Protect your equipment!

Protect your personnel!

Protect the environment!





Specifications

Connections
FNPT or Flange (150/300#)
Sizes
1", 2", 3", 4", 6" (Sizes up to 12" Available Upon Request)
Max. Pressure
360 PSI (Alu 232 PSI)
Materials
316 Stainless Steel (Anodized Aluminum in 4" size only)
Seals
Fluorocarbon, EPDM, Chemraz ?
*Other materials available upon request.

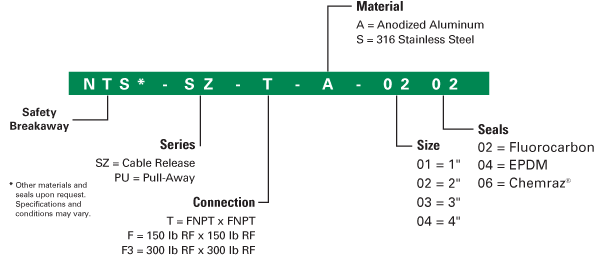

订货型号
