OPW VISI-FLO 1600 OEM Series Sight Flow Indicators流量视镜
OPW VISI-FLO 1600 系列可视流量指示器,流量视镜

OPW工程系统公司提供对作业中的流体进行监控、检测和显示的产品。无论客户是监控石石油产品、液化气体、溶剂，或是危险的、腐蚀性化学品，OPW的仪器及配件都将帮助客户控制这些流体。OPW提供完整系列的可视流量指示器，包括流行的VISI-FLO系列。OPW可视流量指示器提供了一种快速、可靠和便宜的途径，通过该途径可以核对流速和流向，以及监控流体管线中颜色和澄清度。OPW可视流量指示器各种尺寸、形式和材质可用于广泛的工业应用中，所有OPW可视流量指示器都通过了1.5倍的额定压力测试，从而确保其在恶劣的使用环境中拥有- 大的可靠性。

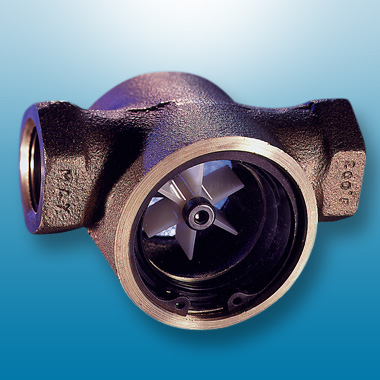

OPW 1600系列可视流量指示器有优质的材料制造，经过安全测试，以经济的价格保证长期可靠地服务。有助于监控关键流体流量、润滑剂、冷却剂管线和喷水系统。OPW 1600 Series Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. Good for monitoring critical fluid flow, lubricants, coolant lines and sprinkler systems.

OPW VISI-FLO Sight Flow Indicators 可视流量指示器 PDF

优点：

- 经济的价格
- 允许您快速核实流量，并监控流体管线内颜色和澄清度。
- 可在48小时内运至，以便将停机时间减到- 少。

标准配置：

- 黄铜结构
- 单个核双观察窗设计
- 1/8'' - 2 ''的尺寸
- 压力额定值为125psig
- 提供带或无转子型
- FNPT或者BSPT连接

规格参数：

- - 大压力 125PSIG
- - 高温度：93度
- 密封件：1600全系列采用标准丁晴橡胶。如有要求，其它密封件可控选择。
- 玻璃类型：钢化碱石灰
- 螺纹：NPT,BSPT
- 指示器：Delrin
- 壳体：青铜

OPW VISI-FLO Sight Flow Indicators

OPW Engineered Systems offers a complete line of sight flow indicators, including the popular VISI-FLO series.Sight-flow indicators are a cost-effective and efficient way to visually monitor the flow of fluids and to determine if any problems exist at certain points along the industrial process line. VISI-FLO is the most thoroughly engineered sight-flow indicator on the market and is available in three series: the Standard 1400 Series, the 1500 High-Pressure/High-Temperature Series and the 1600 OEM Series.

Exclusive 3-Year "No-Leak" Guarantee: An innovative radial seal creates a constant and uninterrupted sealing force between the body and outside diameter of the glass lens for a longer-lasting and better seal than conventional flat seals
Maintenance-Free Design: Bolt-on-body design requires no special maintenance or torqueing sequence in order to prevent leaks, resulting in safer operation than units using tie rods to fasten the lens and seal to the body
Dimensional Interchangeability: Feature end-to-end dimensions that match Jacoby-Tarbox and Penberthy and other manufacturers' units. Available in 3/4", 2", 3" and 4" sizes

OPW Engineered Systems offers a complete line of sight flow indicators, including the popular VISI-FLO series.

VISI-FLO 1400 Series Sight Flow Indicators

VISI-FLO 1500 Series Sight Flow Indicators

VISI-FLO 1600 OEM Series Sight Flow Indicators
